V Cut PCB Depaneling Machine Designed to Prevent Microcracks and Component Damage During Aluminum PCB Depaneling Process

Brand Name:	Winsmart
Model Number:	SMTD3
MOQ:	1 set
Price:	USD1-10000/Set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Testing Report:

Provided

PCB Material:

FR1, FR4, CEM1, CEM3, MCPCB

PCB Thickness:

0.6-3.5mm

Cutting Length:

No Limit

Origin:

China, New

Name:

Aluminum PCB Separator

Cutting Speed:

Adjustable

Max Cutting Length:

Customizable

Device Name:

Automatic PCB Separator

Cutting Stress:

Voltage:

220/110V

Minimize Thickness:

0.8-3.5 Mm

Circular Blade:

￠80 ￠60mm

Power:

Pcb Type:

V-scoring Boards

Pcb Length:

No Limit

Supply Ability:

200 sets per month

Product Description

V Cut PCB Depaneling Machine Designed to Prevent Microcracks and Component Damage During Aluminum PCB Depaneling Process

V Cut PCB Depaneling Machine Introduction:

The 3-Group Cutter Aluminum PCB Separator is a specialized depaneling machine designed for high-precision, low-stress separation of aluminum-based PCBs, particularly used in LED lighting and power electronics. Featuring three groups of circular blades, this machine enables multi-stage progressive cutting, effectively reducing mechanical stress and preventing microcracks or component damage during the depaneling process.

Featuring compact structure, easy operation and low maintenance cost, the V-Cut depanelizer requires no professional training for daily operation. Its precise mechanical positioning greatly reduces board stress and product defective rate, significantly improving production efficiency and product consistency. Widely applicable in consumer electronics, automotive electronics, communication equipment and industrial circuit board manufacturing, it is a reliable and cost-effective depaneling equipment for modern electronic factories.

V Cut PCB Depaneling Machine Features:

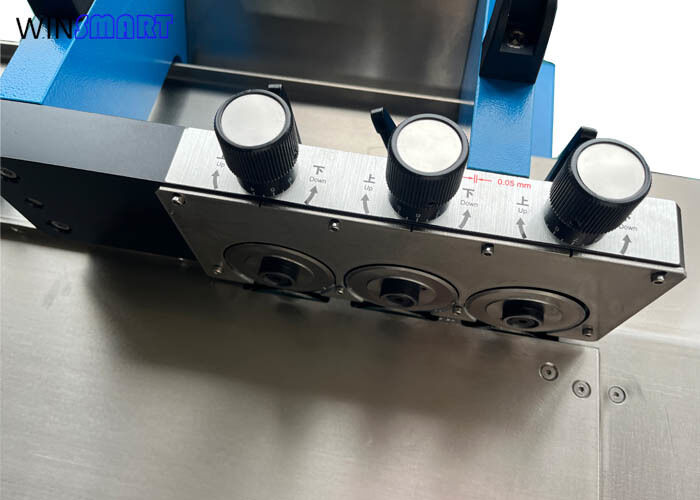

1). Easy operation, high cutting speed. First blade set separate 40% of board, second blade set separate 40% of board, third blade set separate the rest 20% to finish depaneling.
2). 3 blade set share cutting stress as a straight line, to make sure lower stress to avoid bending issue.
3). Very good positioning for smooth cutting even if light v-scoring.
4). Blade is made of imported high speed steel which is durable, life time is 6-36 months.
5). Cutting speed is adjustable according to different application.
6). Precision scale for upper blades adjustment, blades are re-sharpened.

V Cut PCB Depaneling Machine Specification:

Model	SMTD3
Machine Dimension	400x400x330mm
Platform Dimension	2400x300x200mm
Max Cutting Length	No limit
Warranty	12 months
PCB Material	FR4, MCPCB, Copper Boards
Cutting Speed	0-500mm/s
PCB Thickness	0.6-3mm
Power	220/110V
Machine Weight	50kgs
Wooden Case Dimension	116x67x58cm
Gross Weight	75kgs

V Cut PCB Depaneling Machine Functions:

3-groups cutters cutting one V-scoring line to reduce cutting stress.

Adjustable cutting speeds.

Supports max 130mm PCB width.

Customized larger version is available.

Adjustable cutting speed to match material type and production needs.

Blade Height Adjustment

Accommodates varying board thicknesses and component placements.
