V Cut PCB Depaneling Machine ensuring minimal mechanical stress on PCBs during the depaneling process for better yield

Brand Name:	Winsmart
Model Number:	SMTPD2
MOQ:	1 Unit
Price:	Negotiable
Packaging Details:	Plywood Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Driven Mode:

Pneumatic

Air Pressure:

0.4-0.6MPa

Cutting Thickness:

0.6-3.5mm

Cutting Length:

580mm

Repeat Ability:

±2 μm

PCB Material:

Aluminium, CEM, FR4

Name:

Metal Core V Cut PCB Depanelizer

Cutting Speed:

0-300mm/s

Safetyfeatures:

Emergency Stop Button, Safety Cover

Inspection Video:

Provided

Pcb Connection:

V-cut

Dimension:

780x300x450mm

Cutting Force:

Adjustable

Blade Material:

High Speed Steel

Operation Mode:

Automatic Cutting

Powersupply:

220V/50Hz Or 110V/60Hz

Max Component:

60mm Height

Power Rate:

Driven:

Motor

Supply Ability:

500 Units/Year

Highlight:

V Cut PCB depaneling machine minimal stress

PCB depaneling machine better yield

V Cut depaneling machine mechanical stress

Product Description

V Cut PCB Depaneling Machine ensuring minimal mechanical stress on PCBs during the depaneling process for better yield

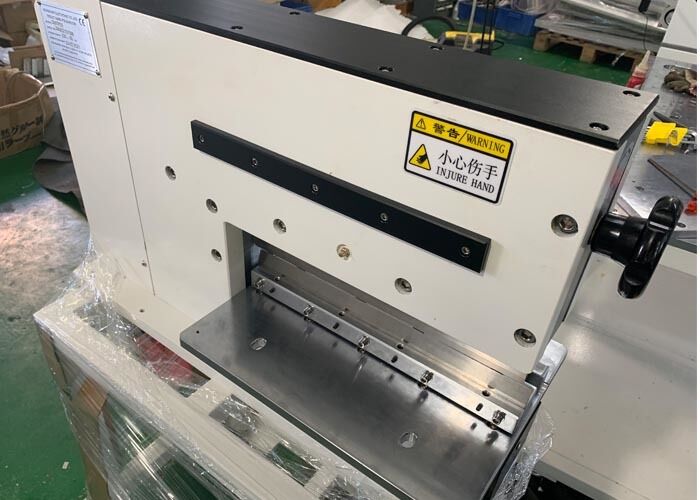

V Cut PCB Depanelizer Description:

This V-Cut PCB Depanelizer is a professional precision separation machine specially designed for cutting and splitting PCB panels with pre-scored V-grooves. It adopts an accurate mechanical rolling cutting structure to realize clean, smooth and low-stress board separation without pulling traces, cracking substrates or damaging solder joints and SMD components.

Featuring adjustable blade height, platform position and cutting speed, the machine is compatible with various PCB thicknesses, V-slot depths and different board materials such as FR4 and aluminum substrates. With stable blade calibration and minimal cutting deviation, it ensures consistent depaneling quality and high repeatability for mass production.

Compact in structure, easy to operate and low in maintenance, this V-cut separator greatly improves production efficiency while reducing board breakage and product defective rate, which is an ideal solution for SMT assembly, electronics manufacturing and batch PCB processing.

V Cut PCB Depanelizer Features:

1). Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.
2). boring work, suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.
3). Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.
4). cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.
5). Blades can be re-sharpened
6). Cutting stress is less than 300 uE.

V Cut PCB Depanelizer Specifications:

Model	SMTPD2
Driven	Pneumatic
Blade length	600mm
Cutting fixture	Available
Warranty	1 year
PCB feeding	Manual
PCB material	Aluminium, CEM, FR4
Repeat ability	±2 μm
Control system	Manual
Name	Pneumatic PCB Separator

V Cut PCB Depanelizer Applications:

It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.

Please provide below parameters of your panels to confirm if standard machine is workable for your applications:

1. Max component height

2. Min distance between component and v-scoring

3. Max panel length

V Cut PCB Depanelizer Advantages:

No Thermal Stress: Unlike laser or router methods, mechanical cutting avoids heat buildup.

High Cutting Accuracy: Clean, burr-free separation of dense aluminum boards.

Dust-Free Operation: No debris or dust like with mechanical routing.

Supports Thick PCBs: Designed for robust, high-current board materials.

Long Board Compatibility: Ideal for LED strips and linear lighting applications.

Repeatable Results: Consistent quality across high-volume production.

Packing and Shipping:

Product Packaging:

The PCB separator machine will be packaged in a sturdy cardboard box to prevent damage during transportation.
All necessary accessories and parts will be securely placed inside the box.
The box will be labeled with the product name and specifications for easy identification.

Shipping:

The product will be shipped via a reputable courier service to ensure timely and safe delivery.
Customers will receive a tracking number to monitor the status of their shipment.
The shipping cost will be calculated based on the customer's location and shipping preferences.
International customers may need to pay additional customs fees upon receipt of their order.
