Inline PCB Separator Router Machine with 300x300mm Working Area and 0.8-3.0mm Routing Bit Dia for AC 380V Power Supply

Brand Name: Winsmart
Model Number: SMTIR500
MOQ: 1 Set
Price: USD40000-80000
Packaging Details: Plywood case
Payment Terms: T/T,L/C,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
PCB Feeding:
Automatic Width Adjustment
PCB Unloading:
Flat ESD Belt
Spindle Speed:
100,000RPM
Fixture Quantity:
2
Working Table:
2
Spindle Quantity:
2
Working Area:
300x300mm, Could Be Customized
Cutting Precision:
±0.05mm
Routing Bit Dia:
0.8-3.0mm
Name:
Inline PCB Separator Router Machine
Supply Ability:
100 Sets/Month
Product Description
Inline PCB Separator Router Machine with 300x300mm Working Area and 0.8-3.0mm Routing Bit Dia for AC 380V Power Supply

This high-precision, automated solution is designed for separating individual PCBs from panels. Featuring dual spindles and working tables, it significantly boosts productivity in high-volume electronics manufacturing. Supports MES integration and barcode scanning for seamless traceability and real-time production monitoring.

Key Features
  • Cutting path full closed loop, real-time error tracking, feedback, compensation.
  • Using imported split PLC, breaking the traditional computer-based board PLC control card, higher stability and stronger anti-interference.
  • Dual spindles cutting 2 boards at the same time.
  • Automatically identify barcodes and retrieve cutting programs.
  • Has tool detection function and auto change function.

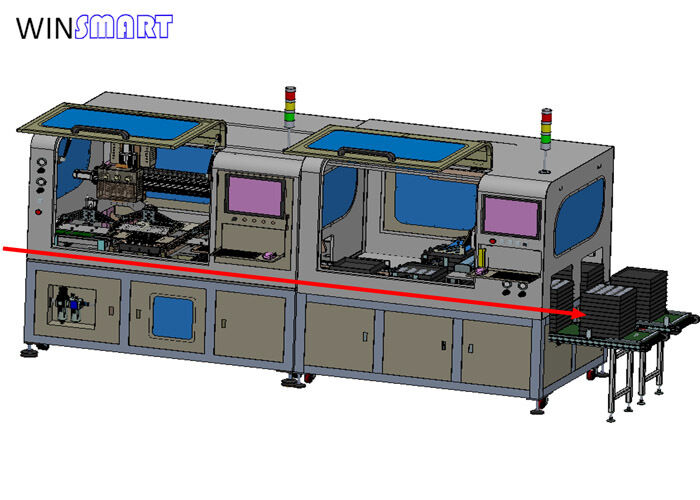

Inline PCB Separator Router Machine with 300x300mm Working Area and 0.8-3.0mm Routing Bit Dia for AC 380V Power Supply 0
Technical Specifications
Model Number SMTIR500
Machine Size Approx 2250(L)x1300(W)x1750(H)mm
Machine Weight Approx 800kgs
Max PCB Size 300x450mm (customized), Dual tables
PCB Thickness 0.4-6mm
Cutting Spindle 100000rpm/min
Cutting Accuracy ±0.05mm
Repeat Accuracy ±0.01mm
Power Supply AC 380V, 50/60Hz, 3KW
Operational Advantages
  • Increased Throughput: Dual spindle and table design enables continuous high-speed operation
  • Improved Accuracy: Vision system and precision spindle ensure high-cut quality
  • Traceability & Quality Control: MES and barcode integration provide full production traceability
  • Reduced Downtime: Alternate table operation and optional tool auto-change minimize interruptions
  • Operator-Friendly: Simple HMI and offline programming reduce training time
  • Dust-Free Operation: Integrated vacuum system extends equipment life
Applications

It is widely used in electronic product manufacturing industry. Because the traditional manual folding method will produce strong stress, which has a serious impact on the product quality, so the manual folding has been basically replaced by the machine cutting. This inline router system, with dual separated spindles and dual tables for high volume production.

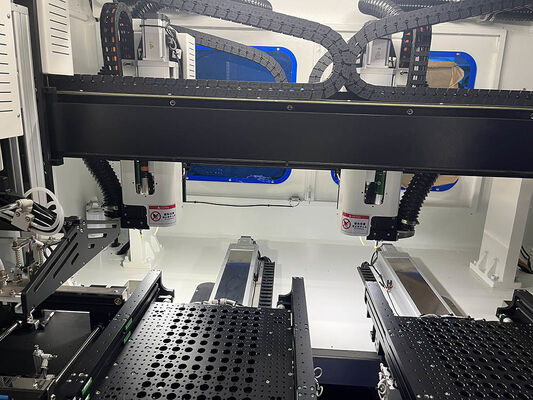

Inline PCB Separator Router Machine with 300x300mm Working Area and 0.8-3.0mm Routing Bit Dia for AC 380V Power Supply 1 Inline PCB Separator Router Machine with 300x300mm Working Area and 0.8-3.0mm Routing Bit Dia for AC 380V Power Supply 2
Why Choose Our Solution
  • Stable: Imported main components with equipment weight over 700kg
  • Professional: Multiple patented technologies in automation
  • Innovative: Committed to developing labor-saving, highly automated equipment
  • Responsive: Solution provided within 2 hours of inquiry
