3-group 1200mm Aluminum PCB Separator Machine with Adjustable Cutting Speed

Brand Name:	Winsmart
Model Number:	SMTD3
MOQ:	1 set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Testing Report:

Provided

PCB Material:

FR1, FR4, CEM1, CEM3, MCPCB

PCB Thickness:

0.6-3.5mm

Cutting Length:

No Limit

Origin:

China, New

Name:

Aluminum PCB Separator

Supply Ability:

200 sets per month

Highlight:

3-group PCB separator machine

aluminum PCB depaneling machine

adjustable speed V cut machine

Product Description

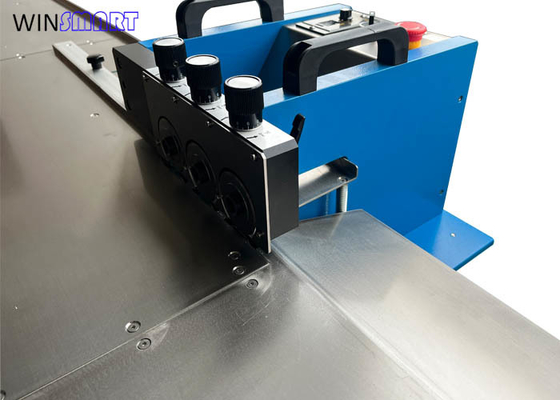

3-group 1200mm Aluminum PCB Separator Machine with Adjustable Cutting Speed

Aluminum PCB Separator Introduction:

The 3-Group Cutter Aluminum PCB Separator is a specialized depaneling machine designed for high-precision, low-stress separation of aluminum-based PCBs, particularly used in LED lighting and power electronics. Featuring three groups of circular blades, this machine enables multi-stage progressive cutting, effectively reducing mechanical stress and preventing microcracks or component damage during the depaneling process.

This separator is ideal for medium to long-format aluminum PCBs, offering a balance between speed, accuracy, and durability. The progressive cutting design ensures smooth edges and high consistency across the entire panel, making it a preferred solution for mass production lines requiring robust quality control.

Aluminum PCB Separator Features:

1. Multiple blades cut several lines simultaneously, greatly improving productivity.

2. Prevents microcracks and component damage by minimizing mechanical stress.

3. Flexible blade positioning to accommodate different panel designs and cut lines.

4. Ensures smooth, burr-free edges suitable for aluminum or FR4-based LED PCBs.

5. Rigid frame design with vibration-free operation ensures long-term reliability.

Aluminum PCB Separator Specification:

Model	SMTD3
Machine Dimension	400x400x330mm
Platform Dimension	2400x300x200mm
Max Cutting Length	No limit
Warranty	12 months
PCB Material	FR4, MCPCB, Copper Boards
Cutting Speed	0-500mm/s
PCB Thickness	0.6-3mm
Power	220/110V
Machine Weight	50kgs
Wooden Case Dimension	116x67x58cm
Gross Weight	75kgs

Aluminum PCB Separator Functions:

3-groups cutters cutting one V-scoring line to reduce cutting stress.

Adjustable cutting speeds.

Supports max 130mm PCB width.

Customized larger version is available.

Adjustable cutting speed to match material type and production needs.

Blade Height Adjustment

Accommodates varying board thicknesses and component placements.
