Adjustable Speed Multi-blade LED PCB Separator Machine for Max 1200mm Boards

Brand Name:	Winsmart
Model Number:	SMTD3
MOQ:	1 set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Testing Report:

Provided

PCB Material:

FR1, FR4, CEM1, CEM3, MCPCB

PCB Thickness:

0.6-3.5mm

Cutting Length:

No Limit

Origin:

China, New

Name:

Multi-blade PCB Separator

Supply Ability:

200 sets per month

Highlight:

adjustable speed PCB separator machine

multi-blade LED depaneling machine

1200mm V cut PCB cutter

Product Description

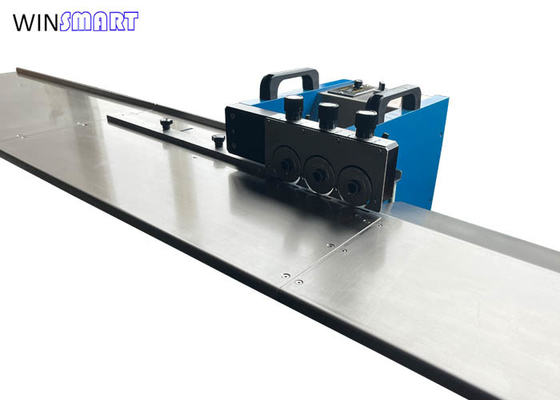

Adjustable Speed Multi-blade LED PCB Separator Machine for Max 1200mm Boards

LED PCB Separator Description:

The Multi-Blade LED PCB Separator Machine is a high-efficiency depaneling solution specifically designed for long and panelized LED PCBs. Utilizing multiple circular blades in parallel, it enables simultaneous multi-line cutting, ensuring high throughput with minimal stress on the board and components. This machine is ideal for mass production environments, offering superior precision, repeatability, and operational safety.

LED PCB Separator Features:

Multi-Blade Cutting Design

Multiple blades cut several lines simultaneously, greatly improving productivity.

Stress-Free Depaneling

Prevents microcracks and component damage by minimizing mechanical stress.

Adjustable Blade Spacing

Flexible blade positioning to accommodate different panel designs and cut lines.

High-Precision Cutting

Ensures smooth, burr-free edges suitable for aluminum or FR4-based LED PCBs.

User-Friendly Interface

Simple control panel with speed adjustment and emergency stop functions.

Durable Construction

Rigid frame design with vibration-free operation ensures long-term reliability.

LED PCB Separator Specification:

Model	SMTD3
Machine Dimension	400x400x330mm
Platform Dimension	2400x300x200mm
Max Cutting Length	No limit
PCB Material	FR4, MCPCB, Copper Boards
Cutting Speed	0-500mm/s
PCB Thickness	0.6-3mm
Power	220/110V
Machine Weight	50kgs
Wooden Case Dimension	116x67x58cm
Gross Weight	75kgs

LED PCB Separator Application:

LED Lighting Industry

• LED strips

• Tube lights

• Panel lights

• Backlight modules

• Aluminum PCB Separation

Suitable for high-thermal-conductivity boards used in power and lighting applications.

• Consumer ElectronicsnEfficient depaneling of long-format control boards and light bars.

• Automotive LED ModulesnCutting of high-reliability LED boards used in tail lights, headlights, and displays.

Adjustable Speed Multi-blade LED PCB Separator Machine for Max 1200mm Boards 0
