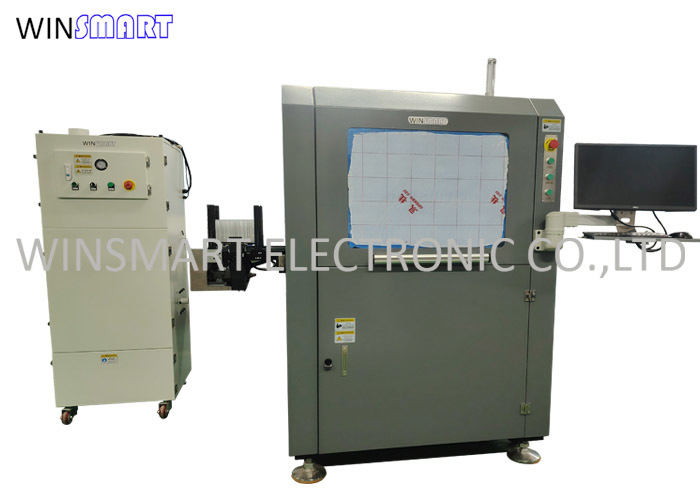

Full Automatic PCB Separator PCB Router Machine with 360 Degree Rotation Gripper

Inline PCB Depaneling Router Overview:

The inline PCB depaneling router is a fully automated, high-precision PCB separation solution designed for modern SMT production lines. Eliminating the need for custom jigs, this system uses a high-speed spindle and vision-guided routing to depanel PCBs with minimal mechanical stress. Integrated with tray destacking and stacking modules, it offers a complete inline solution for loading and unloading PCBs, ideal for high-mix, high-volume manufacturing environments.

Our Service:

1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.

Inline PCB Depaneling Router Featuers:

1. No-Jig Required Design

2. Eliminates the need for custom fixtures, reducing setup time and cost.

3. Flexible clamping and vacuum table system adapts to various PCB shapes and sizes.

4. High-Precision Routing System

5. High-speed spindle (up to 60,000 RPM) ensures clean, burr-free cuts.

6. Vision alignment system with fiducial recognition and auto-correction.

7. Inline Conveyor System

8. SMEMA-compatible design allows seamless integration into existing SMT lines.

9. Automatic PCB loading/unloading with programmable conveyor width adjustment.

10. Tray Destacker and Stacker

11. Automatic tray handling system for batch PCB input and output.

12. Supports multiple tray sizes and configurations for flexible production.

13. Intelligent Control Software

14. User-friendly touchscreen HMI with recipe management and real-time monitoring.

15. Barcode/QR code scanning and MES/ERP integration optional.

Inline PCB Depaneling Router Specification:

PCB Depaneling Router Advantages:

No Fixture Cost

• Saves on fixture design and manufacturing costs, especially for high-mix production.

Stress-Free Depaneling

• Router-based cutting minimizes mechanical stress and prevents damage to components.

High Flexibility

• Quickly adaptable to new PCB models or production changes without downtime.

Compact & Fully Automated

• Minimizes labor and floor space while maximizing throughput.

Reduced Cycle Time

PCB Depaneling Router Details:
