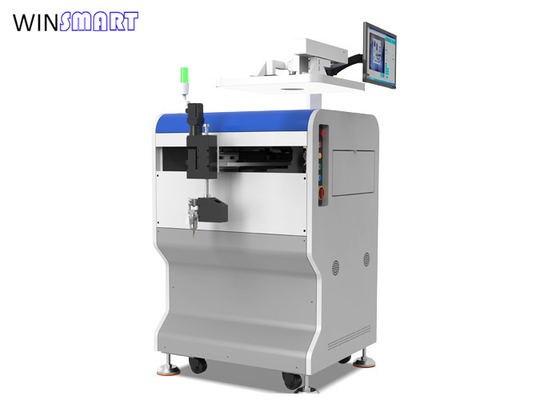

Four-axis Conveyor Type SMT Glue Dispenser System 400x400mm Working Area

Brand Name:	Winsmart
Model Number:	SMTID5X
MOQ:	1 Unit
Price:	Negotiable
Packaging Details:	Plywood Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Warranty:

12 Months

Control:

Condition:

100% New

Working Table:

Conveyor Belt

Dispensing Accuracy:

±0.1mm

Rbi Speed:

Continuous RBI 18000 Points /min

Training:

Provided

Power:

2600W

Windows System:

Win 10

Name:

SMT Glue Dispenser

Supply Ability:

500 Units/Year

Highlight:

Four-axis SMT glue dispenser system

Conveyor type glue dispenser machine

400x400mm SMT glue dispenser

Product Description

Four-axis Conveyor Type SMT Glue Dispenser System 400x400mm Working Area

SMT Glue Dispenser System Features:

CCD visual positioning, without any fixtures.

CCD automatically recognizes templates and generates dispensing trajectories.

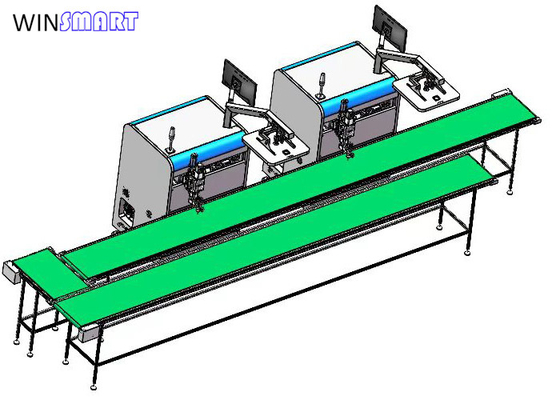

Combines dispensing and handling processes for multiple production lines.

Compatible with various dispensing valves and controlling system, easy to operate, easy to learn and use.

SMT Glue Dispenser System Applicable Glue:

RTV white silicone, black glue, epoxy resin, UV glue, conductive glue, AB glue, heat dissipation glue, etc.

SMT Glue Dispenser System Technical Parameters:

Model	SMTID5X
Automatic Glue Dispenser	Yes
Dispensing Head	360°Rotatable (Optional)
Glue Capacity	2600ml
Dispensing Tilt Angle	180°(Optional)
Glue Detection	Auto(Optional)
Programming	Visual CCD
Axes	4
Working Area	400mm400100mm
Max Moving Speed	1000mm/s
Driven	Servo motor+ball screw
Air Pressure	≥0.65Mpa
Power Rate	1.5KW
Dispensing Valve Quantity	1
Repeatability Accuracy	±0.02mm
Control Mode	IPC + control Card
Y Axis	200mm
Machine Dimension	1200(L)x1400(W)x1650(H)mm
Machine Weight	300kgs

SMT Glue Dispenser System Applications:

Inverters, energy storage, photovoltaics, power supplies, automotive electronics, electronic cigarettes, 3C, semiconductors, etc.

Four-axis Conveyor Type SMT Glue Dispenser System 400x400mm Working Area 0

Packing and Shipping:

Product Packaging:

SMT Glue Dispenser Machine x 1
Power cord and adapter x 1
User manual x 1
Tool set x 1
Dispensing needles x 10

Shipping:

Shipping will be processed within 2 business days after payment is received.
Standard shipping takes 5-7 business days to arrive.
Expedited shipping options are available for an additional charge.
Shipping is available within the United States only.
