Dual Table Dual Spindle Full Automatic PCB Separator Machine Tray Destacker

Brand Name:	Winsmart
Model Number:	SMTIR500
MOQ:	1 Set
Price:	USD40000-80000
Packaging Details:	Plywood case
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

PCB Feeding:

Automatic Width Adjustment

PCB Unloading:

Flat ESD Belt

Spindle Speed:

100,000RPM

Fixture Quantity:

Working Table:

Spindle Quantity:

Working Area:

300x300mm, Could Be Customized

Cutting Precision:

±0.05mm

Routing Bit Dia:

0.8-3.0mm

Name:

Full Automatic PCB Separator Machine

Supply Ability:

100 Sets/Month

Highlight:

Dual Spindle PCB Separator Machine

Tray Destacker PCB Separator Machine

Full Automatic PCB Separator Machine

Product Description

Dual Table Dual Spindle Full Automatic PCB Separator Machine Tray Destacker

Full Automatic PCB Separator Overview:

Full automatic PCB separator machine has become popular in electronics manufacturing for several compelling reasons:

High Throughput for Mass Production.

Precision and Quality.

Automation and Integration.

Programmatic Flexibility.

Reduced Human Error.

It is widely used in mass production environments such as automotive electronics, consumer electronics, LED lighting, telecommunications, and medical devices.

Full Automatic PCB Separator Feature:

The machine has functions of cutting path full closed loop, real-time error tracking, feedback, compensation.

It ues Win10 operation system and imported PLC, breaking the traditional computer-based board PLC control card, higher stability and stronger anti-interference.

It has twins spindles and twins tables, which can cut 2 boards at the same time.

This full automatic PCB separator also has tool detection function and auto change function.

Can connect client's MES system with optional barcode scanner function.

Full Automatic PCB Separator Specification:

Model Number	SMTIR500
Machine Size	Approx 2250(L)x1300(W)x1750(H)mm
Machine Weight	Approx 800kgs
Max PCB Size	300x450mm (customized), Dual tables
PCB Thickness	0.4-6mm
Transmission Height	900±50mm
Transmission Direction	Left -> Right or Right -> Left
Transportation Speed	1500mm/s
Feeding Mode	Section type transportation guide rail
Rail Width Adjustment	Auto
Communication Signal	SMEMA
PCB Positioning	Fixtures positioning
Picking System	Vacuum, 40-60 nozzles
Cutting Spindle	100000rpm/min
Cooling Type	Self cooling
Automatic Tool Change	Yes
Break Knife Checking	Yes
Cutting Accuracy	±0.05mm
Routing Bit	0.8-3.0 Diameter
Repeat Accuracy	±0.01mm
Coordinate Moving Speed	1000mm/s
Unloading Mode	ESD Belt
Tool Detection	Yes
Procedure Programming	Gerber Drawing Import/Editing Program by Visual
Air Supply	5-8kgs/cm2
Power Supply	AC 380V, 50/60Hz, 3KW

Full Automatic PCB Separator Comparation with Other Depaneling Solution:

Depaneling Method	Pros	Cons
Manual Breaking	Low cost	High stress, poor quality
V-Score Cutter	Fast for simple boards	Limited to straight lines
Punching/Die Cutting	Fast for high volume	Expensive tooling, inflexible
Offline Router	Good quality	Manual loading/unloading
Inline Router	Best quality, fully automated	Higher initial cost

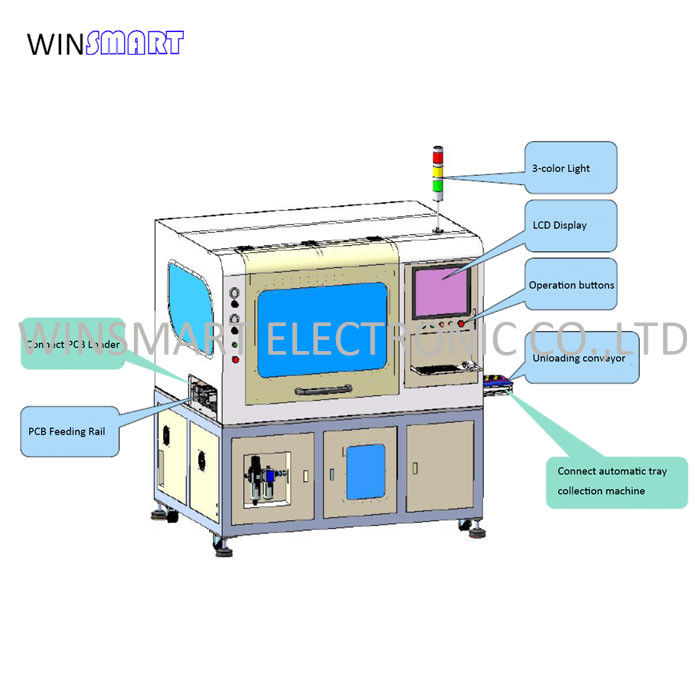

Full Automatic PCB Separator Machine Connecting Tray Destacker:

inline pcb depaneling router

This full automatic machine is an advanced depaneling solution designed for high-speed, high-precision, full automation reduces reliance on manual operators and minimizes human error.

Two independent worktables allow simultaneous loading and unloading of PCBs, and it ensures minimal downtime and higher throughput.

Two independent spindles allow for parallel processing of different PCBA at the same time.

It can also work with a tray destacker machine for a very high volume production, reduce labor and less rework.

Reasons why choose us:

1. Stable: the main components of equipment are imported. The equipment weight over 700kg. Master the most mature production technology in the automation industry.

2. Professional: we have many patented technologies in the automation industry.

3. Innovation: we always committed to developing equipment that is more labor-saving, highly automated, and has better universality.

4. Fast: response to customer demands within 1 hour, and provide a solution within 2 hours.
