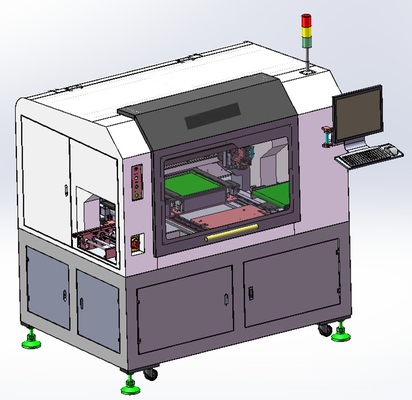

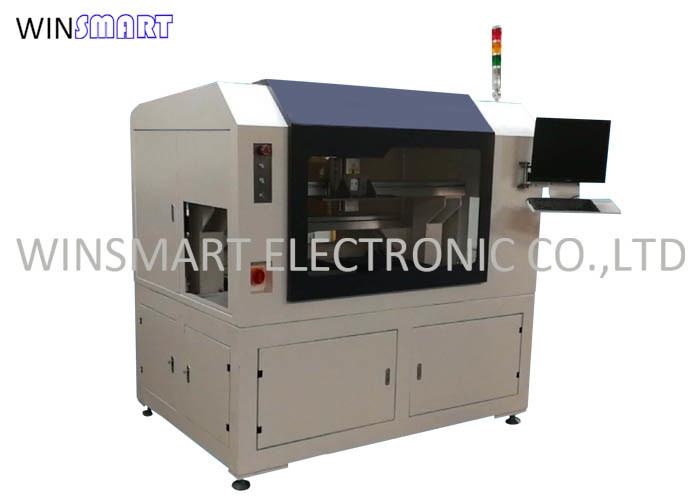

Dual Spindle Dual Table Inline PCB Depaneling Router Machine Max 100,000 RPM

Brand Name:	Winsmart
Model Number:	SMTIR500
MOQ:	1 Set
Price:	USD20000-80000
Packaging Details:	Plywood case
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

PCB Feeding:

PCB Unloading:

Spindle Speed:

100,000RPM

PCB Positioning:

Customized Fixture

Working Table:

Spindle Quantity:

Working Area:

300x300mm, Could Be Customized

Cutting Precision:

±0.05mm

Routing Bit Dia:

0.8-3.0mm

Name:

Dual Spindle PCB Depaneling Router

Supply Ability:

100 Sets/Month

Highlight:

Dual Table PCB Depaneling Router Machine

100 000 RPM PCB Depaneling Router Machine

Inline PCB Depaneling Router Machine

Product Description

Dual Spindle Dual Table Inline PCB Depaneling Router Machine Max 100,000 RPM

Dual Spindle dual table PCB Router Feature:

1.The equipment XYZ axis and feeding axis uses high-precision dust-proof modules, with accuracy ± 0.01 and good dust-proof effect

2.The feeding structure adopts magnetic suction, which are easy to change products and have strong universality.

3.Equipped with MARK point detection and automatic correction function

4.Fast and easy programming for product switch

5.Capable of matrix programming and shortcut programming

6.Quick editing functions for copying, modifying, and overall offsetting of complete programs

7.Support different program for 2 working tables

8.Tool life management testing

9.Overall path optimization function

10.Reserve MES port and robot port

11.Cutter breakage detection function

12.Optional barcode scanner and auto tool change function

Dual Spindle dual table PCB Router Specification:

Category	Description		Parameter
Recognition system	Automatic find mark points		Color image search and localization
	Camera		Imported color camera with a resolution of 0.008mm/pixel
	FOV size		6*5mm
	Lighting		Circular structure, white light source
	Image processing speed		Screen processing time<300ms/FOV
Mechanical system	Antistatic measures		ESD brush
	PCB size		300x450mm
	Cutting precision		±0.05mm
	Cutting speed		0-200mm/sec
	PCB thickness		0.5-3.0mm
	Tool inspection		Tool broken and replacement prompt
	XYZ platform	Driven	Servo motor, motion module, precision screw and guide rail
		Spindle speed	Max 100,000RPM
		Repeatability	±0.01mm
		Moving speed	1000ms/sec
Operating system	Operation system		Win 10
	Detection		Automatic startup detection function
	AutoCut Software	Feature	Processing data can be learned through CCD
		Interface	Graphic production and processing data
	Mark	Max Mark point	2 mark points
		Recognition speed	<0.5sec/mark
Control system	PC		PC
	Display		17” LCD
Other	Weight		800kgs
	Power supply		AC 220V, 50Hz
	Air supply		>4.5kg/cm³
	Noise		75±5dB(A)
	Color		White

Dual Spindle dual table PCB Router Parameters:

1.Working table:two

2.PCB size(L*W*H(mm)):50*50*0.3-300*300*3.0

3.Spindle: SycoTec 4033AC-ESD,max 100000rpm

4.Routing bit diameter:0.8-3.0mm

5.PCB unloading:Flat belt

6.Cutting trajectory: straight line/arc/circle/L-shaped/U-shaped/square

7.CCD positioning: 5 million pixels

8.MES,connection:API,Function: Process inspection and product transit

9.Configure static eliminator

10.Broken knife detection

11*Monitoring of cutter disctance

12.MARK identification: Copper, Tin Plated (Coaxial Light Source)

13.Collection: independent suction, bottom suction as a whole platform suction, ensuring that the board surface is dust-free after cutting

14.The height of the bottom of the equipment above the ground is ≥ 100mm (bottom wiring groove)

15.Cutting precision:≤±0.05mm

16.Repeatability : ≤±0.01mm

Dual Spindle dual table PCB Router Details:

1. The width is automatically adjusted according to different boards.

Dual Spindle Dual Table Inline PCB Depaneling Router Machine Max 100,000 RPM 0

2. The Y axis institution adopts high-precision fully enclosed modules, dual Y-axis movement, good dust prevention effect, and an accuracy of up to ± 0.02. The fixture mechanism has a fully automatic pressure plate function to prevent the product from moving during cutting. Effectively improve product quality.

Dual Spindle Dual Table Inline PCB Depaneling Router Machine Max 100,000 RPM 1

3. Independent dual spindle which is improve 1.5 time productivity as single spindle.

Dual Spindle Dual Table Inline PCB Depaneling Router Machine Max 100,000 RPM 2

4. This PCB depaneling router machine comes with industrial vacuum cleaner.

Dual Spindle Dual Table Inline PCB Depaneling Router Machine Max 100,000 RPM 3

Dual Spindle dual table PCB Router Main Accessories:

Item	Description	Brand	Remark
1	Servo motor and driver	Panasonic
2	Cylinder, solenoid valve	SMC, AirTAC, FESTO
3	Computer	Industrial PC
4	Photoelectric switch, limit switch, proximity switch	OMRONSICK
5	Screw rod	TBIHIWINTHK
6	Rail	HIWIN/PMITHK
7	Electrical components such as contactors and air switches	CHINT
8	Spindle	SycoTec
9	Cleaner	High power industrial vacuum cleaner
