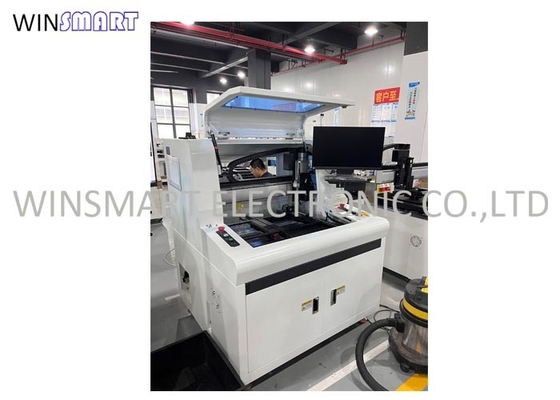

Automatic PCB Separator V Cut PCB Depaneling Machine With Minimize Speed 0-400mm/S

Automatic PCB Separator V Cut PCB Depaneling Machine With Minimize Speed 0-400mm/S

Product Description:

The V Cut PCB Depaneling Machine is an advanced and efficient device designed for separating printed circuit boards (PCBs) in the electronics manufacturing industry. It is an inline PCB depaneling machine that can easily handle a variety of PCB materials and sizes with precision and speed.

• PCB Dimension: This machine is designed to handle standard PCB sizes of 250x200mm, making it suitable for most PCB manufacturing needs.
• Device Name: The device is called an Automatic PCB Separator, as it has the ability to automatically separate PCBs with high accuracy and efficiency.
• PCB Material: The V Cut PCB Depaneling Machine is capable of handling a wide range of PCB materials, including MCPCB and FR4, making it a versatile choice for different production requirements.
• CE Approval: This product has received CE approval, ensuring its compliance with European safety, health, and environmental protection standards.
• Cutting Capacity: The machine has a cutting capacity of 400x400mm, allowing it to handle larger and more complex PCBs with ease.

• Inline PCB Depaneling Machine: The V Cut PCB Depaneling Machine is an inline machine, which means it can be easily integrated into existing production lines for a seamless and efficient process.
• V-cut PCB Separator: The machine uses a V-cut method to separate PCBs, which ensures clean and precise cuts without damaging the PCBs or their components.
• High Speed and Accuracy: With advanced cutting technology and precise control systems, this machine can achieve high cutting speeds and accuracy, reducing production time and improving overall efficiency.
• Easy to Use: The V Cut PCB Depaneling Machine is designed for user-friendly operation, with a simple interface and intuitive controls that require minimal training for operators.
• Durable and Reliable: Made with high-quality materials and components, this machine is built to last and can withstand heavy production use, ensuring long-term reliability and cost-effectiveness.

Features:

1. Product Name: V Cut PCB Depaneling Machine
2. Pcb Connection: Milling Bridge And V-cut
3. Advantage: Full Automatic
4. Max Cutting Length: Customizeable
5. Device Name: Automatic PCB Separator
6. Ce Approval: Yes
7. Inline PCB Depanel
8. Inline PCB Depaneling Machine
9. Inline V-cut PCB Separator
10. Inline PCB Depaneling Equipment

Technical Parameters:

Applications:

Winsmart Inline PCB Depaneling Machine, also known as Inline V-cut PCB Depanelizer, is a highly efficient and precise cutting equipment used in electronic manufacturing and PCB assembly. It is designed to separate individual PCBs from a panel in a fast, safe, and cost-effective way. With the increasing demand for smaller and more complex PCBs, the need for an efficient and reliable PCB depaneling solution is essential. Winsmart Inline PCB Depaneling Machine is the perfect solution for this demand.

Winsmart is a leading manufacturer of electronic production equipment in China. With years of experience in the industry, Winsmart is known for its high-quality products and excellent customer service. The brand is trusted by electronic manufacturers worldwide for its innovative and reliable solutions.

Winsmart Inline PCB Depaneling Machine is available in different models to suit different production needs. The SMTID3 model is a popular choice due to its high efficiency and user-friendly features. It is suitable for cutting PCBs with a thickness of 0.3-5mm, making it a versatile machine for various production requirements.

Winsmart is a Chinese company that prides itself on its high-quality products. The Inline PCB Depaneling Machine is designed and manufactured in China, ensuring strict quality control and adherence to international standards. This makes Winsmart a reliable and trusted brand in the electronic manufacturing industry.

Winsmart Inline PCB Depaneling Machine is equipped with either a saw blade or a routing bit, depending on the production needs. The saw blade is suitable for cutting thicker PCBs, while the routing bit is ideal for cutting thinner PCBs with intricate designs. This flexibility allows for precise and efficient cutting of various types of PCBs.

Winsmart Inline PCB Depaneling Machine is also known as an Inline PCB Separator. It is designed to separate individual PCBs from a panel without damaging the components. This ensures the quality and integrity of the PCBs, making it an essential equipment in the SMT production line.

The Inline PCB Depaneling Machine is an automatic device that can be easily integrated into the production line. It requires minimal human intervention, reducing the risk of human error and increasing efficiency. This makes it a valuable addition to the electronic manufacturing process.

Winsmart Inline PCB Depaneling Machine is suitable for various applications and usage scenarios in the electronic manufacturing industry. Some of the common scenarios include:

• PCB Assembly: The Inline PCB Depaneling Machine is used to separate individual PCBs from a panel after the assembly process is complete.
• Quality Control: The machine is used in quality control processes to ensure the integrity and functionality of individual PCBs before they are shipped out.
• Prototype Production: Winsmart Inline PCB Depaneling Machine is also suitable for prototype production, providing quick and efficient results for small-scale production needs.
• High-Volume Production: With its fast speed and high efficiency, the machine is ideal for high-volume production, making it an essential equipment in large-scale electronic manufacturing facilities.

The Inline PCB Depaneling Machine can also be used in other industries that require precision cutting of materials, such as automotive, aerospace, and medical device manufacturing.

Winsmart Inline PCB Depaneling Machine is designed to offer various attributes that make it a top choice in the industry. Some of the key attributes include:

• High Efficiency: The machine is designed to cut a large number of PCBs in a short period, increasing productivity and reducing production time.
• Precise Cutting: The use of advanced technology and high-quality blades ensures precise cutting of PCBs without damaging the components.
• User-friendly: The machine is easy to operate, making it suitable for operators with different levels of expertise.
• Flexible: The machine can be easily adjusted to accommodate different PCB sizes and thicknesses, making it a versatile equipment for various production needs.
• Fast Speed: The machine has a minimized speed of 0-400mm/s, providing quick and efficient results for high-volume production needs.
• Durable and Reliable: Winsmart Inline PCB Depaneling Machine is made with high-quality materials and undergoes strict quality control, ensuring its durability and reliability in the production process.
• Safe: The machine is designed with safety features to prevent accidents and ensure the safety of the operators.
• Cost-effective: With its high efficiency and fast speed, the machine helps to reduce production costs and increase profitability for electronic manufacturers.

Overall, Winsmart Inline PCB Depaneling Machine is a valuable addition to any electronic manufacturing facility. Its high efficiency, precise cutting, user-friendly features, and cost-effectiveness make it an essential equipment for a smooth and successful production process.

Packing and Shipping:

The V Cut PCB Depaneling Machine will be carefully packaged to ensure safe delivery to our customers.

• The machine will be wrapped in protective materials to prevent any damage during transportation.
• All accessories and components will be securely placed in a separate box to avoid any loss or damage.
• The packaging will be labeled with the product name, model number, and serial number for easy identification.
• A user manual and installation guide will be included in the package for convenience.

We offer various shipping options to accommodate the needs of our customers.

• For domestic orders, we offer standard ground shipping or expedited shipping for an additional fee.
• For international orders, we provide air or sea freight options based on the customer's preference and budget.
• All shipping costs will be calculated at checkout and customers will receive a tracking number once the order has been shipped.

We strive to ensure timely delivery of our products and will work with our shipping partners to resolve any issues that may arise during transit.

Thank you for choosing our V Cut PCB Depaneling Machine. We hope it will serve you well.
