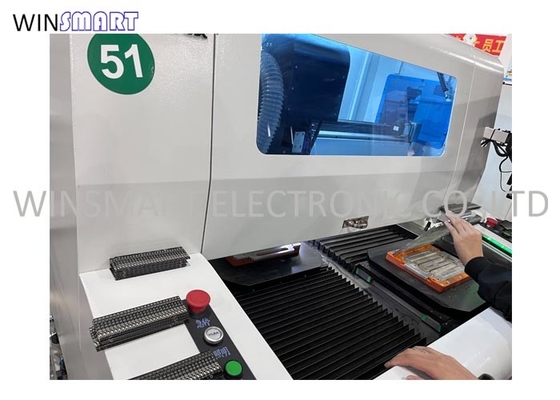

Adjustable Cutting Force Inline V Cut PCB Separator With CE Approval For PCBs

Adjustable Cutting Force Inline V Cut PCB Separator With CE Approval For PCBs
Adjustable Cutting Force Inline V Cut PCB Separator With CE Approval For PCBs

Large Image :  Adjustable Cutting Force Inline V Cut PCB Separator With CE Approval For PCBs

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTID3
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD1-50000/unit
Packaging Details: Plywood case
Delivery Time: 30-40 days
Payment Terms: T.T
Supply Ability: 200 units/month

Adjustable Cutting Force Inline V Cut PCB Separator With CE Approval For PCBs

Description
Name: Inline PCB Separator Max Cutting Length: Customizeable
Pcb Thickness: 0.3-5mm Minimize Speed: 0-400mm/s
Cutting Capacity: 400x400mm Advantage: Full Automatic
Machine Size: 1000*1010*1860mm Pcb Material: MCPCB, FR4
High Light:

Adjustable V Cut PCB Separator

,

FR4 V Cut PCB Separator

,

CE PCB Depaneling Machine

Adjustable Cutting Force Inline V-Cut PCB Separator With CE Approval For PCBs

Product Description:

Product Overview: Automatic PCB Separator
Introduction

The V Cut PCB Depaneling Machine, also known as V-groove PCB Separator, is a cutting-edge device designed to meet the needs of PCB manufacturers. It is an essential tool for separating printed circuit boards (PCBs) from a production panel. With its advanced features and high cutting capacity, this machine is ideal for processing MCPCB and FR4 materials.

Minimize Speed

The V Cut PCB Depaneling Machine is equipped with a high-speed motor that allows for a minimize speed of 0-400mm/s. This ensures efficient and precise cutting, making it ideal for high-volume production.

Cutting Capacity

This machine has a cutting capacity of 400x400mm, making it suitable for various sizes of PCBs. It can handle both small and large panels, providing flexibility for different production needs.

Cutting Force

The cutting force of the V Cut PCB Depaneling Machine is adjustable, allowing for customization based on the type and thickness of the PCB material. This feature ensures clean and accurate cuts without damaging the components on the board.

Device Name

The V Cut PCB Depaneling Machine is also known as an Automatic PCB Separator. This name emphasizes its automated functionality, making it a time-saving and efficient tool for PCB separation.

PCB Material

This machine is specifically designed for processing MCPCB and FR4 materials, which are commonly used in PCB manufacturing. It can handle these materials with ease, ensuring high-quality and precise cuts.

Conclusion

In summary, the V Cut PCB Depaneling Machine is a versatile and high-performance device that is essential for PCB manufacturers. With its advanced features such as high minimize speed, adjustable cutting force, and compatibility with MCPCB and FR4 materials, it provides efficient and accurate PCB separation, making it a valuable asset for any production line.



Features:

  • Product Name: V Cut PCB Depaneling Machine
  • Blade Type: Saw Blade / Routing Bit
  • Pcb Dimension: 250x200mm(standard)
  • Cutting Capacity: 400x400mm
  • Ce Approval: Yes
  • Device Name: Automatic PCB Separator
  • V-groove PCB Separator
  • Inline V-cut PCB Depanelizer
  • Inline PCB Depaneling Machine
  • High Precision PCB Separator


Technical Parameters:

Model SMTID3
Working area 250x200mm, 0-80mm(Z)
CCD 540
Spindle Optional SycoTec and China Brand
Screw rod, guide rail, module China Brand
Servo Motor Panasonic
Electrostatic eliminator ADK-801ADK-801
PC Industrial Grade
Motion control card PI9074
monitor 17 inch
Operating system Windows 10
Spindle speed 40000-60000RPM
XYZ drive speed XY.800mm/s, Z.300mm/s
Cutting speed 0-80mm/s
Cutting accuracy ±0.05mm
Overall power 5KW
Working platform Rotating tray can cut in two directions
Spindle cooling system Air cooling
Vacuum cleaner power 3.5kw 380V,3-Phase(optional top and bottom vacuum cleaning)
Air pressure 0.5-0.7MPa
Noise control <80 dB
Safety device Safety door and sensor
Operation mode Inline
PCB Loading Adjustable feeding conveyor
Automatic fault detection and maintenance mode Self diagnosis function, real-time error information display and intuitively query the status of each IO port for troubleshooting
Technical support and training Provide equipment operation, programming, hardware maintenance and training services
Vision system CCD visual positioning correction system
Adjustable height 50-70mm
Warning light Tricolor lamp
Working range protective cover Blind protection mode of hexahedral door
Dimension 1000(L)x1010(W)x1860(H)mm
Weight About 1000kgs

Applications:

Winsmart SMTID3 V Cut PCB Depaneling Machine
Adjustable Cutting Force Inline V Cut PCB Separator With CE Approval For PCBs 0

The Winsmart SMTID3 V Cut PCB Depaneling Machine is a cutting-edge product designed and manufactured in China. This innovative machine is specifically designed for efficient and precise separation of printed circuit boards, making it an essential tool for electronic manufacturing companies.

Product Features
  • Brand Name: Winsmart
  • Model Number: SMTID3
  • Place of Origin: China
  • Pcb Connection: Milling Bridge and V-cut
  • Device Name: Automatic PCB Separator
  • Cutting Capacity: 400x400mm
  • Condition: New
  • Advantage: Full Automatic

The Winsmart SMTID3 V Cut PCB Depaneling Machine is equipped with the latest technology and advanced features, making it a top choice for electronic manufacturers. It is designed to provide superior performance and high precision in PCB separation, and is suitable for a wide range of applications.

Product Applications

The Winsmart SMTID3 V Cut PCB Depaneling Machine is suitable for the following applications and scenarios:

  • Inline PCB Depanel: This machine is ideal for inline PCB depaneling, providing a seamless and efficient process for separating PCBs.
  • Inline PCB Depaneling Machine: The Winsmart SMTID3 is a highly efficient and reliable inline PCB depaneling machine, designed to meet the demands of high-volume production.
  • Inline V-cut PCB Depanelizer: With its advanced V-cut technology, this machine is perfect for inline V-cut PCB depanelization, ensuring clean and accurate cuts every time.
  • Automatic PCB Separator: The Winsmart SMTID3 is a fully automatic PCB separator, eliminating the need for manual labor and reducing production time and costs.
  • PCB Cutting Machine: This machine is specifically designed for PCB cutting, providing a fast and efficient solution for electronic manufacturers.

With its versatile applications and advanced features, the Winsmart SMTID3 V Cut PCB Depaneling Machine is a must-have for any electronic manufacturing company looking to improve their production process and achieve high-quality results.



Packing and Shipping:

Packaging and Shipping for V Cut PCB Depaneling Machine
  • Each V Cut PCB Depaneling Machine will be carefully packaged in a strong wooden case to ensure safe transportation and delivery.
  • The machine will be wrapped with protective materials such as foam and bubble wrap to prevent any damage during transit.
  • Inside the wooden case, the machine will be secured in place with straps and cushioning materials to prevent movement and minimize any potential impact.
  • The wooden case will be labeled with product information, handling instructions, and any necessary warning labels.
  • The package will also include a user manual, spare parts, and any other necessary accessories.
