|FFC To PCB, FPC To PCB, Wires To PCB Soldering
|Depends On Application
|Depends On Application

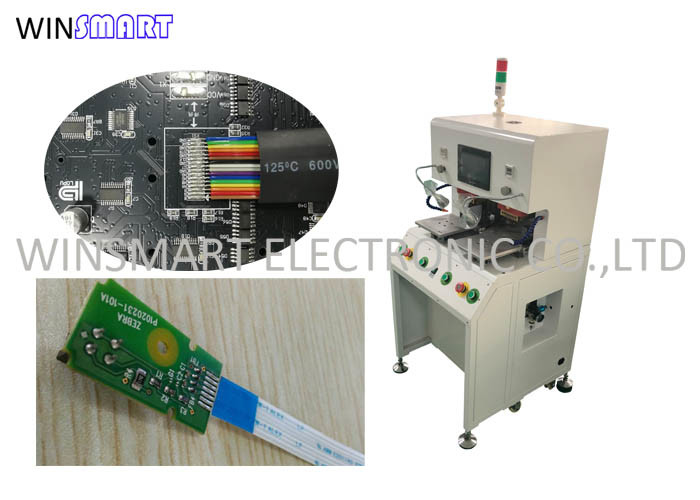

|Dual Table Hot Bar Soldering Machine
Dual Table Hot Bar Machine,
PID Hot Bar Soldering Machine,
AC220V Hot Bar Soldering Machine
Dual Table Hot Bar Soldering Machine: Closed Loop PID Temperature Control
Dual Table Hot Bar Soldering Machine Introduction:
The Hot Bar Soldering Machine is a specialized equipment used for precise and reliable soldering of electronic components onto PCBs. It employs advanced technologies, such as closed-loop PID temperature control, to ensure accurate and consistent soldering results. With a soldering area of 200x150mm, this machine is suitable for a wide range of applications in the electronics manufacturing industry.
Dual Table Hot Bar Soldering Machine Features:
Closed Loop PID Temperature Control: The machine utilizes a closed-loop PID control system to precisely monitor and regulate the soldering temperature. This ensures consistent and accurate temperature control, minimizing the risk of soldering defects.
Large Soldering Area: With a soldering area of 200x150mm, dual tables, the machine can accommodate a variety of PCB sizes and component configurations, offering flexibility in soldering operations.
Programmable Parameters: The machine allows for programmable parameters, such as temperature, time, and pressure, to be set based on specific soldering requirements. This feature enables customization and adaptability to different soldering applications.
Precise Alignment and Pressure Control: The machine incorporates mechanisms for precise alignment of components and controlled application of pressure during the soldering process. This ensures proper contact between the component and the PCB for reliable solder joints.
User-Friendly Interface: The machine features a user-friendly interface, allowing operators to easily set and adjust soldering parameters, monitor the soldering process, and access various functions and settings.
Dual Table Hot Bar Soldering Machine Specification:
|Working air pressure
|Thermode head size
|RT~500℃ tolerance ±5℃
|CCD + LCD Monitor
|Press start buttom
Dual Table Hot Bar Soldering Machine Applications:
PCB Assembly: The machine is suitable for soldering electronic components onto PCBs during the assembly process. It ensures secure and reliable solder joints.
Flexible Printed Circuit (FPC) Bonding: FPCs, which are used in applications such as displays and flex connectors, can be bonded to other components or PCBs using the hot bar soldering machine.
LED Module Production: The machine is commonly used in the production of LED modules, where precise soldering of LEDs onto PCBs is required.
Ribbon Cable Bonding: Ribbon cables used in various electronic devices can be bonded to connectors or other components using the hot bar soldering machine.
Automotive Electronics: The machine finds applications in the soldering of electronic components for automotive electronics, such as control modules and sensors.
Medical Device Manufacturing: The hot bar soldering machine is used in the production of medical devices that require precise and reliable soldering, ensuring the integrity of the electronic components.
