Product Details:
|
| Condition: | 100% New | Warranty: | 12 Months |
|---|---|---|---|
| PCB Type: | Stamp Holes | Packaging: | Plywood Case |
| Application: | Electronic Manufacturing | Control System: | PLC |
| Machine Size: | 1000mm*1000mm*1400mm | Machine Weight: | 500kg |
| Material: | Aluminum, FR4, FPC Etc. | Max. Feeding Speed: | 100mm/s |
| Max. Punching Force: | 20T | Max. Punching Size: | Customizable |
| Max. Punching Thickness: | 2mm | Operation Mode: | Manual/Automatic |
| Power Supply: | 220V/50Hz | Product Name: | Pneumatic PCB Punching Machine |
| Punching Accuracy: | ±0.1mm | Stroke: | 50mm |
| High Light: | 10 Ton PCB Punching Machine,PLC PCB Punching Machine,Pneumatic Punching PCB Machine |
||

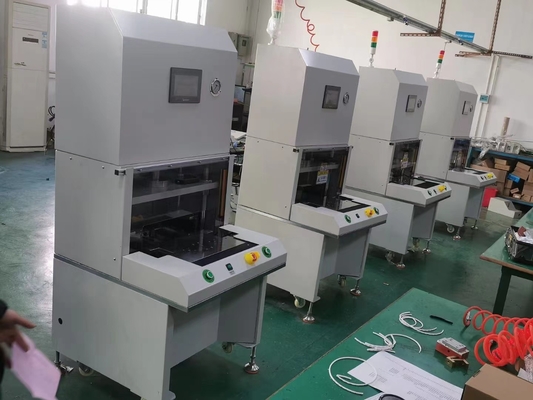

10 Ton Pneumatic PCB Punching Machine 10S Cycle Time Improving Productivity
Pneumatic PCB Punching Machine Introduction:
The 10 Ton Pneumatic PCB Punching machine is a specialized equipment designed to efficiently punch holes or slots in printed circuit boards (PCBs). It utilizes pneumatic force to deliver a high level of punching power, enabling quick and precise operations. With a cycle time of 10 seconds, this machine is specifically developed to improve productivity in PCB manufacturing processes.
PCBA Punching Machine Precise Punching Mold:
Pneumatic PCB Punching Machine Features:
1. High Punching Force: The machine is equipped with a pneumatic system that provides a punching force of 10 tons. This ensures efficient and reliable hole or slot punching in PCBs.
2. Fast Cycle Time: The machine's quick cycle time of 10 seconds allows for rapid punching operations, contributing to improved productivity and reduced production cycle times.
3. Pneumatic Control System: The machine utilizes a pneumatic control system, which ensures precise and consistent punching operations. It provides reliable control over the punching force and ensures accurate hole or slot placement.
4. Customizable Punching Patterns: The machine can be customized to accommodate different punching patterns based on specific PCB designs and requirements. It allows for flexibility in hole or slot placement.
5. Easy Operation: The machine features user-friendly controls and interfaces, making it easy for operators to set up punching parameters, adjust settings, and monitor the machine's operation.
Pneumatic PCB Punching Machine Function:
This PCB punching machine can be used for the PCB depaneling in different industries. It helps to avoid the micro-cracks that may have been caused in the PCBs by the manual process. It offers an easy to set up punching dies with the changeable die tooling. The machine also features a convenient loading and unloading of PCBs with its easy operation. The air cylinder driven machine features a safe protection system and can be suitable for different applications.
Pneumatic PCB Punching Machine Specifications:
| Working area | 460*320mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Pneumatic Force | 10T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| PCB type | Tab boards |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| PCB Loading | Manual |
| PCB Alignment | Punching mold |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 680kgs |
Pneumatic PCBA Punching Machine Operation Steps:
1. Preparation: Ensure that the machine is properly set up and connected to a compressed air source. Place the PCB to be punched securely on the machine's punching mold.
Programming: no need to program, customized mold saving program time. Manual load the boards on the mold, press "Start" button for punching.
Positioning: Align the PCB accurately within the machine's punching mold, ensuring that the desired punching locations align with the punching tools or dies.
Activation: Activate the machine's pneumatic control system by initiating the punching process. This can typically be done by pressing a button or engaging a foot pedal, which triggers the pneumatic system to exert the punching force.
Punching: The machine will exert the pneumatic force onto the punching tools or dies, which will penetrate the PCB, creating the desired holes or slots. The punching operation should be carried out within the specified cycle time of 10 seconds.
Inspection: After the punching process is complete, inspect the punched PCB to ensure that the holes or slots are accurately placed and meet the required specifications.
Pneumatic PCBA Punching Machcine Applications:
Electronics Manufacturing: The machine is used in the production of PCBs for various electronic devices, such as consumer electronics, telecommunications equipment, and industrial control systems.
PCB Prototyping: During the prototyping stage, the machine helps create holes or slots in PCBs for components placement and testing purposes.
PCB Assembly: The punched holes or slots in PCBs facilitate the insertion of electronic components during the assembly process.
Custom PCB Manufacturing: The machine is suitable for manufacturing custom-designed PCBs that require precise hole or slot placement.
