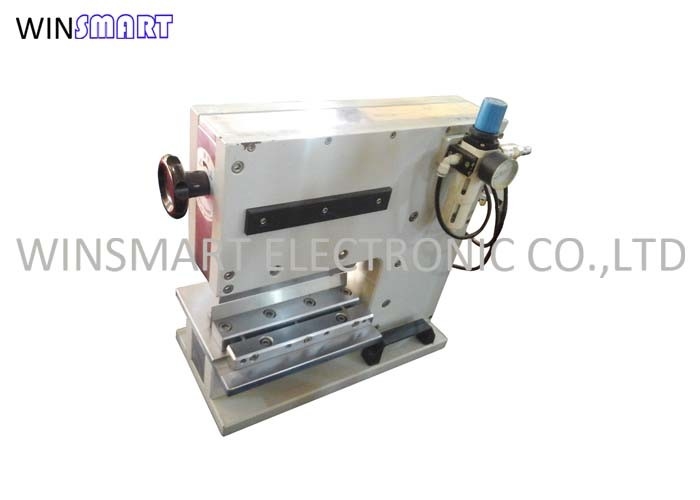

No Power Required 130mm V Cut PCB Depanelizer Metal Core PCB Shearing Machine

No Power Required 130mm V Cut PCB Depanelizer Metal Core PCB Shearing Machine

PCB Shearing Machine Description:
The PCB Shearing Machine is a specialized machine designed for the separation of metal core PCBs using a V-cut method. It operates without the need for external power, making it a convenient and portable solution for PCB depaneling. With its compact design and efficient V-cut mechanism, this machine is specifically designed for metal core PCBs up to 130mm in size.

PCB Shearing Machine Features:

1. No Power Required: The machine operates without the need for external power, making it highly portable and easy to use in various locations without the constraints of power availability.
2. V Cut Separation: The machine utilizes a V-cut method to separate metal core PCBs. The V-cut mechanism creates a precise and clean separation along the predefined cut lines, ensuring minimal stress on the PCB and components.
3. Compact Design: The machine is designed to be compact and lightweight, allowing for easy transportation and space-saving in manufacturing environments.
4. Adjustable Cutting Depth: The machine offers adjustable cutting depth settings, allowing for customization based on the specific metal core PCB thickness, ensuring optimal cutting performance.
5. Simple Operation: The machine features user-friendly controls and a straightforward operation process, making it easy for operators to set up and use without the need for extensive training.
6. Durable Construction: The machine is built with sturdy materials to ensure durability and long-term reliability in demanding manufacturing environments.

PCB Shearing Machine Functions:
The PCB Shearing Machine performs the following functions:

1. PCB Loading and Positioning: The machine allows for easy and precise loading and positioning of metal core PCBs up to 130mm in size.
2. V Cut Separation: The machine employs a V-cut mechanism to create clean and precise separation along predetermined cut lines on metal core PCBs.
3. Adjustable Cutting Depth: The machine allows for the
4. Adjustment of cutting depth to accommodate different metal core PCB thicknesses, ensuring optimal cutting performance.
5. Manual Operation: The machine is manually operated by the operator, who guides the metal core PCB through the V-cut mechanism to achieve separation.
6. Portable and Power-Free: The machine does not require external power, making it highly portable and suitable for on-site or remote depaneling needs.

PCB Shearing Machine Specification:

PCB Shearing Machine Applications:
The PCB Shearing Machine is suitable for various applications, including:

1. LED Lighting: Metal core PCBs are commonly used in LED lighting applications. This machine efficiently separates metal core PCBs used in LED lighting fixtures without damaging the sensitive LED components.
2. Power Electronics: Metal core PCBs are utilized in power electronics applications, such as inverters, motor drives, and power supplies. This machine offers a reliable and efficient solution for depaneling these specialized PCBs.
3. Automotive Electronics: The machine is applicable in the automotive industry, where metal core PCBs are used in electronic control units (ECUs), lighting systems, and other automotive electronics.
4. Industrial Electronics: Metal core PCBs find use in industrial control systems, robotics, and automation equipment. The machine enables precise and stress-free separation of metal core PCBs in these applications.
