Product Details:
|
| Driven: | Pneumatic | Testing Report: | Provided |
|---|---|---|---|
| Working Table: | 2 | Warranty: | 12 Months |
| Program Mode: | PC | Repeatable Precision: | ±0.05mm |
| Dispensing Head: | Rotabale | Name: | Automatic Hot Glue Dispenser |
| High Light: | Automatic Hot Glue Dispenser,14Inch Hot Glue Dispenser,Pneumatic Glue Dispensing Equipment |
||

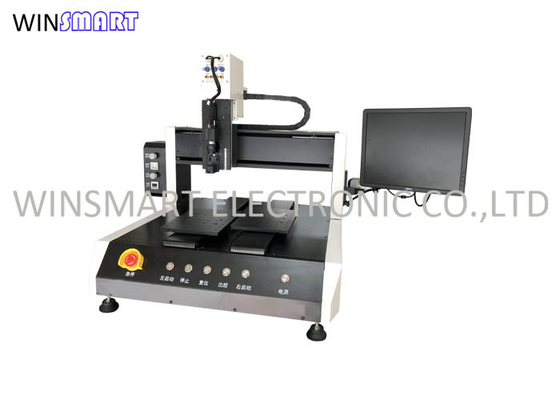

14 Inch LCD Automatic Hot Glue Dispenser Glue Dispensing Equipment
Automatic Hot Glue Dispenser Features:
1. Adopting computer control, Windows operating system, fault sound and light alarm, and menu display.
2. CCD visual positioning system.
3. Adopting servo motor+screw drive.
4. Capable of carrying: pneumatic injection valve, piezoelectric valve, screw valve, AB rubber valve, etc.
5. The automatic constant temperature system of the valve body ensures consistent flowability of the coating.
6. Optional laser height detection system, which can automatically calibrate the Z-axis height after workpiece deformation.
7. 14 inch LCD for easy programming.
8. Precise dispensing controlling system is used.
Automatic Hot Glue Dispenser Specification:
| Model | SMTDR6 |
|
Working area X/Y/Z(mm) |
200*400, Dual Tables |
|
Max load Y-axis/Z-axis |
10kg/5kg |
|
Moving speed X&Y/Z(mm/sec) |
0.1-800/500 |
| Relolution | 0.01mm/Axis |
| Repeatability | ±0.01mm/Axis |
| Program capacity | No Limit |
| Data storage type | PC Windows 10 |
| Coating Capacity | 30CC |
| Display | LCD |
| Number of axis | 4 |
| Programming method | Visual programming |
| Valve nozzle cleaning device | Optional |
| Power | AC110V/220V |
| Working tem. | 5-50℃ |
| Power Rate | 2.5KW |
| Air pressure | ≥ 0.65Mpa |
| valve quantity | 1(standard) |
| Working Humidity | 20-90% no condensation |
|
Dimension (W*D*H)mm |
950*850*850 |
| Weight(Kg) | 150 |
It is widely used for camera module, CSP chip underfill, lens fixing, VCM motor dispensing, IC underfill, metal frame coating, phone assembly and speaker assembly.
