Product Details:
|
| Warranty: | 1 Year | Testing Report: | Provided |
|---|---|---|---|
| Working Stroke: | 400*350mm | Moving Speed: | 500mm/s |
| Program Mode: | Visual CCD System | Repeatable Precision: | ±0.02mm |
| Function: | Adhesive Dispensing | Name: | Online Glue Dispensing Machine |
| High Light: | Online Smt Glue Dispenser,PCB Manufacturing Smt Glue Dispenser,Pcb Adhesive Dispensing Machine |
||

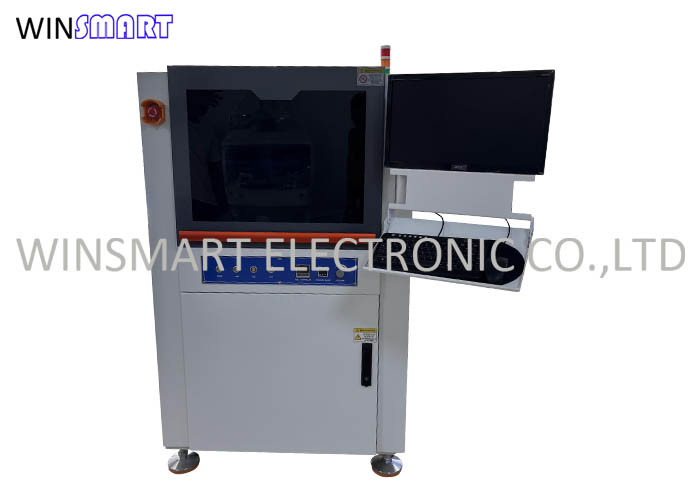

High Precision Online Glue Dispensing Machine For PCB Manufacturing
Online Glue Dispensing Machine Overview:
Online dispensing machine, before and after the connection of the machine position, assembly line operation, improve productivity, save labor costs;It is equipped with electric widening track to adapt to different product sizes, and has a great advantage in dispensing PCB multi-board products.Optional track automatic width adjustment function, with memory function, automatic adjustment when the file call;The weighing system can be equipped to realize the closed-loop control of the amount of glue and improve the accuracy and stability of the glue.The scanning code system can be configured to integrate the whole line management of the assembly line.It can be connected with MES system to improve the level of workshop information management
Online Glue Dispensing Machine Features:
1. PC control, Windows 10 operation system.
2. Auto alarm and menu display function.
3. CCD visual position system.
4. Servo motor+ ball screw drive.
5. SMEMA interface communication.
6. Auto feeding and auto unloading.
7. Different types of nozzle are optional according to your glue type.
Online Glue Dispensing Machine Specification:
| Model | SMTID5X |
| PCB Size | 400x350mm |
| Moving Speed | 500 mm/sec |
| Conveyor Belt Speed | 200 mm/sec |
| Driven Mode | (Stepping + belt) or (servo + screw rod) |
| Program Mode | Visual CCD System |
| Repeatable Precision | ±0.02mm |
| Feeding Mode | Auto |
| Unloading Mode | Auto |
| OS | Windows 10 |
| Communication Port | SMEMA |
| Valve Quantity | 1 |
| Warranty | 1 year |
| Glue Packaging | Up to client's requirement |
| Transport height | 900±20mm |
| Transport direction | L→R(R→L Optional) |
| Driven Type | Pneumatic |
| Precision | High |
| Certification | CE |
| Condition | New |
| Nozzle | Optional |
| Air Pressure | 0.7MPa |
| Power | 220V, 1100W |
| Dimension (W*D*H) | 1000x600x1600mm |
| Weight | 500kgs |
