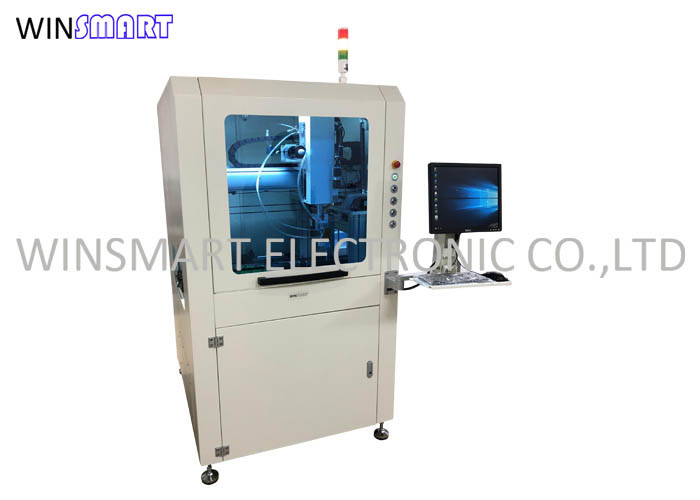

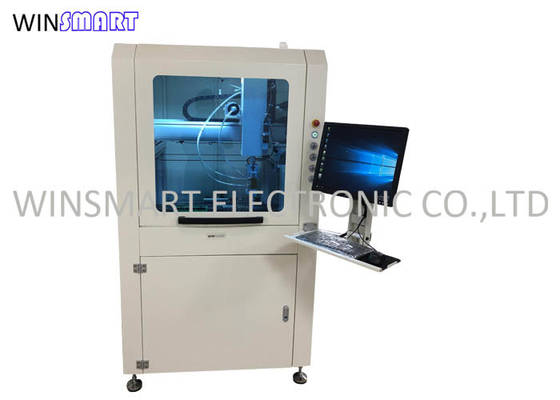

CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area

CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area
CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area
CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area

Large Image :  CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTID350
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD10000/Unit
Packaging Details: Plywood case
Delivery Time: 30 days
Payment Terms: T/T, Western Union
Supply Ability: 100 Units/Month

CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area

Description
Color: White Glue: Silicone, Epoxy Resin, UV Adhesive, Conductive Adhesive, AB Adhesive
Working Stroke: 400*350mm Moving Speed: 500mm/s
Program Mode: Visual CCD System Repeatable Precision: ±0.02mm
Axis: Multi Name: SMT Dispensing Machine
High Light:

CCD System Smt Glue Dispenser

,

350x400mm Glue Dispenser

,

White Smt Glue Dispenser Machine

CCD System Full Automatic SMT Dispensing Machine With 350*400mm Working Area





SMT Dispensing Machine Application:

SMT, smart wear, precision instruments, tablet computers, automotive electronics, military products, aerospace, semiconductors, medical devices, communications, etc.



SMT Dispensing Machine Features:

1. The machine adopts visual positioning and following technology, without fixture, and the assembly line does not stop working.

2. The working mode of on-line dispensing combines product dispensing and handling procedures, and can be adapted to a variety of production lines

3. The layout mode of the new embedded model can be placed and used with the solid line, and the layout is flexible to meet the needs of flexible production.

4. It can be adapted to various dispensing valves and glue supply systems, which is simple to operate, easy to learn and easy to use.

5. Windows 10 operation system. Auto alarm and menu display function.

6. CCD visual position system.

7. Different types of nozzle are optional according to your glue type.

8. Standard SMEMA interface.



SMT Dispensing Machine Applicable Glue:

Silicone, epoxy resin, UV adhesive, conductive adhesive, AB adhesive, heat dissipation adhesive, etc



SMT Dispensing Machine Specification:

Model SMTID350
Working Stroke 410x350x100mm
Moving Speed 500 mm/sec
Conveyor Belt Speed 200 mm/sec
Driven Mode (Stepping + belt) or (servo + screw rod)
Program Mode Visual CCD System
Repeatable Precision ±0.02mm
Feeding Mode Auto
Unloading Mode Auto
OS  Windows 10
Valve Quantity 1
Nozzle Optional
Air Pressure 0.7MPa
Power 220V, 1100W
Dimension (W*D*H) 1400x500x1730mm
Weight 280kgs

SMT Dispensing Machine Details:
1. High quality valve, could be dis-assembled for cleaning.
CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area 0

2. Automatic feeding: adjustable rail track for different width PCB boards.
CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area 1

3. Automatic unloading for next processing.
CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area 2

4. Ajustable fixing plate for better dispensing effect.
CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area 3

SMT Dispensing Machine Case:
CCD System Full Automatic Smt Glue Dispenser Machine With 350*400mm Working Area 4
