1.8KW pCB Depaneling Equipment PCBA Router Win 10 Operation System

1.8KW pCB Depaneling Equipment PCBA Router Win 10 Operation System
1.8KW pCB Depaneling Equipment PCBA Router Win 10 Operation System
1.8KW pCB Depaneling Equipment PCBA Router Win 10 Operation System 1.8KW pCB Depaneling Equipment PCBA Router Win 10 Operation System

Large Image :  1.8KW pCB Depaneling Equipment PCBA Router Win 10 Operation System

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTR05
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1-100000
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

1.8KW pCB Depaneling Equipment PCBA Router Win 10 Operation System

Description
PCB Material: FR4, Aluminum PCB Thickness: 0.8-3.0mm
Application: Tab PCBA Panel Cutting Precision: ±0.05mm
Max PCB Size: 300x350mm Routing Bit: Dia 0.8-2.5mm
Routing Bit Type: Left Rotation Product Name: PCB Depaneler
High Light:

1.8KW PCB Depaneling Equipment

,

0.01mm PCB Depaneling Equipment

,

1.8KW PCB Depanelizer

1.8KW PCB Depaneling Equipment PCBA Router Win 10 Operation System



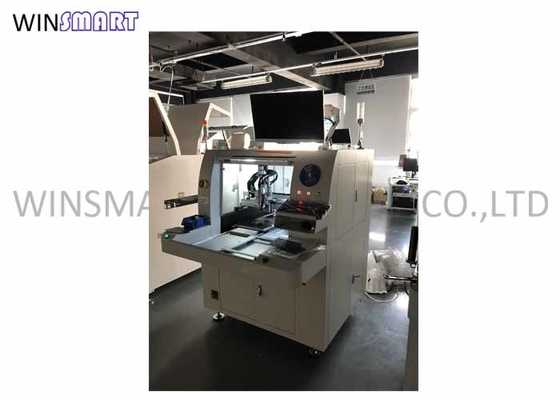

Precision PCBA Router Machine Win 10 Operation System PCB Depaneler



PCB Depaneler Introduction:

It is used for special shaped and irregular PCB board, stamp hole board, multi-point board depaneling.

It mainly uses the equipment that the milling cutter operates at high speed to separate the multi connected PCB according to the pre programmed path, instead of the cutting defects of manual breaking or V-CUT or push. It has high and accurate cutting precision, long service life, good cutting quality, no dust, no burr, low stress, safety and simplicity, improves the product quality and reduces the scrap rate. It is mainly used to segment special-shaped and irregular PCB board, stamp orifice board and multi-point board. The cutting stress is smaller, so as to prevent chips such as PCBA board capacitor from being damaged in the cutting process; Avoid tin crack and component damage caused by manual folding.


PCB Depaneler Features:

1. Dual workbench, with the maximum speed of 100mm / s and the positioning speed of 500mm / s.
2. It can be cut continuously without interruption during loading and unloading.
3. The high-quality shaft system can accelerate and decelerate the system quickly, reduce the synchronization time, reduce the travel productivity, and adhere to high precision.
4. Use high-quality hardware to ensure high rigidity and high functionality.
5. Cover all lead screws to prevent dust from entering, and then move the service life and function of the rotating shaft.
6. Germany spindle is used to ensure precise cutting.

7. It comes with vacuum cleaner for dust free workshop.



PCB Depaneler Specification:

Router Machine
X/Y Cutting Speed 0 ~100mm/s
Repeatability precision ± 0.01mm
X/Y1/Y2/Z control mode Industrial IPC and PC
X/Y1/Y2/Z driven mode AC Servo Motor
Operation and data storage PC
Cutting Precision ± 0.05mm
Spindle Speed 60000rpm(Germany KKAVO)
Power Supply 220V/110V
Air Pressure 4.5kg/cm 2
Power Rate 1.8KW
Vacuum Cleaner
Mode Up or Bottom
Power Supply 380V
Up Cleaner Dimension L650*W400*H1350mm
Bottom Cleaner Dimension L665*W635*H1650mm




PCB Depaneler Operation Steps:

1. Check whether the equipment is powered on normally and confirm that the equipment has been reset and waiting for operation.
2. The operator shall determine the direction and positive and negative directions of the PCB board, place the PCB board on the special fixture, press it gently with the palm of his hand, confirm that the PCB board has been placed, put down the gland and ensure that the PCB board has been tightly covered.
3. Use the visual camera to adjust the programmed cutting path and confirm to save.
4. Press the start button, the machine starts to work, the vacuum cleaner, spindle, electrostatic removal, etc. will also start automatically, and the milling cutter divides boards according to the programmed cutting path.

5. Complete the whole assembly and PCB depaneling, the workbench will exit automatically, open the gland, make sure that the separated PCB board is not damaged, manually remove the product, replace the new PCB board, cover the gland, and click the start button to separate.
6. Repeat step 4.5 until all products are cut.
