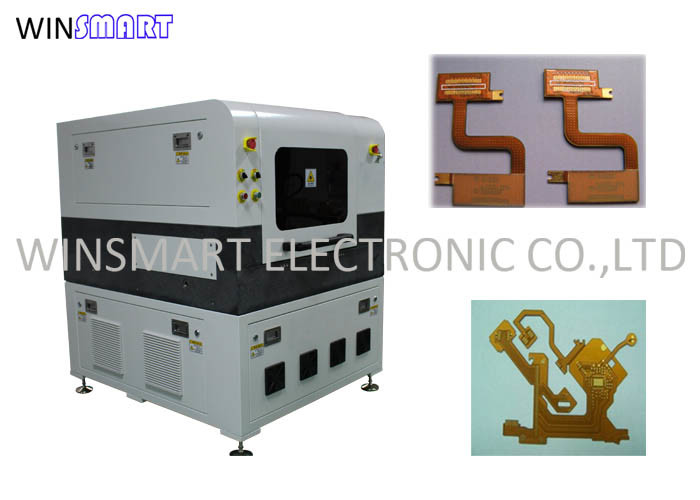

Full Automatic 20W UV Laser Cutter with 400x400mm Marble Platform

Description
PCB Thickness: 0.1-3mm Laser: 20W UV
Warranty: 1 Year PCB Material: FPC And FR4
Working Area: 400x400mm(Customizeable) Name: UV Laser PCB Cutting Machine
High Light:

20W UV Laser Cutter

,

400x400mm Platform UV Laser Cutter

,

20W UV Laser PCB Separator Machine

Full Automatic 20W UV Laser Cutter With 400x400mm Marble Platform



400x400mm Marble Platform Full Automatic UV Laser PCB Cutting Machine



UV Laser PCB Cutting Machine Characteristics:

1. High performance UV / green laser is adopted, with small laser focusing spot and narrow notch.

2. The board cutting process shall be clean and free of dust to avoid circuit failure caused by conduction caused by waste.

3. The PCB board that has been pasted can be divided directly. There is no contact and stress during cutting.

4. High precision two axis working platform, high precision and fast speed.

5. CCD can be used for automatic positioning and correction.

6. The processing is automatically controlled by computer software, and the software interface gives real-time feedback to understand the processing status in real time.



UV Laser PCB Cutting Machine Applicable Industry:

The UV laser cutting machine is suitable for cutting various types of PCB substrates, such as ceramic substrates, soft and hard bonding plates, FR4, PCB, FPC, fingerprint identification module, covering film, composite materials, copper substrates, etc.



UV Laser PCB Cutting Machine Advantages and Disadvantange:

The biggest advantage of the laser depaneling machine is the cutting efficiency and cutting effect. The cutting edge is free of carbonization and burr. And it has adsorption function, which makes it dust-free and smokeless. The laser adopts a non-contact processing method, with small thermal impact, no damage to the substrate or the substrate of active devices, and no stress. CCD positioning and computer-controlled automatic cutting can also realize automatic feeding and unloading. Maximize the production efficiency of the equipment and save labor costs.



Of course, the disadvantages of the laser PCB depaneling machine are also very obvious, and the price is expensive. The latest price of the UV laser PCB cutting machine of top silver Optoelectronics in September 2016 was 90000-150000 $(depending on the accessories and laser power), which is very high for the initial investment cost. However, it is good that the current PCB laser depaneling machine of top silver optoelectronics can be paid in installments, which also puts pressure on the initial investment cost.



UV Laser PCB Cutting Machine Specification:

Model SMTL460
Working Mode Offline or inline
CCD System Yes
Laser Warranty 12 months
Machine Warranty 12 months
PCB Type V-cut and Tab
PCB Material FR4 and Flex PCB
Positioning Vacuum for FPC and fixture for PCB
Waste PCB Collection Function Yes
Cooling Mode Water cooling
Power AC 220V 3KW
Platform Marble
Working field 40mmх40mm
Scanning Speed 2500mm/s
Effective Working Field 400mmx400mm(Customizable)
Repetition Precision of Worktable of Linear Motor ±1μm
Laser Source Optowave UV 15W@30KHz
Laser Wavelength 355nm
Laser Q-Switched diode-pumped all solid-state UV laser
Positioning Precision of Worktable of Linear Motor ±2μm







UV Laser PCB Cutting Machine Parameters:

1. Condition: New

2. After Warranty Service: Field maintenance and repair service, Online support, Spare parts, Video technical support

3. Video outgoing-inspection: Provided

4. Machinery Test Report: Provided

5. Marketing Type: New Product

6. Warranty of core components: 1 Year

7. Core Components: Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure vessel, Pump, Spindle

8. Place of Origin: Guangdong, China

9. Brand Name: Winsmart

10. Product name: Laser PCB Separator Machine

11. Laser power: 15W/20W (Optional)

12. Whole machine precision: ±20 μm

13. Positioning precision: ±2 μm

14. Repeat precision: ±2 μm

15. Voltage/ Power supply: Single Phase AC220V/3KW

16. Machine Weight: 2000KG

17. Processing size: 400mm*400mm

18. Working mode(offline): Manual loading and unloading, Inline is available
