Product Details:
|
| Working Table: | 2 | Cutting Stress: | Less Than 200 U Strain |
|---|---|---|---|
| CCD System: | Yes | PCB Dimension: | 300x300mm (standard) |
| PCB Connection: | Milling Bridge And V-cut | Name: | V Cut PCB Depaneler |
| Highlight: | Full Auto V Cut PCB Depaneling Machine,CCD Camera V Cut PCB Depaneling Machine,300x300mm V Cut PCB Depaneler |
||

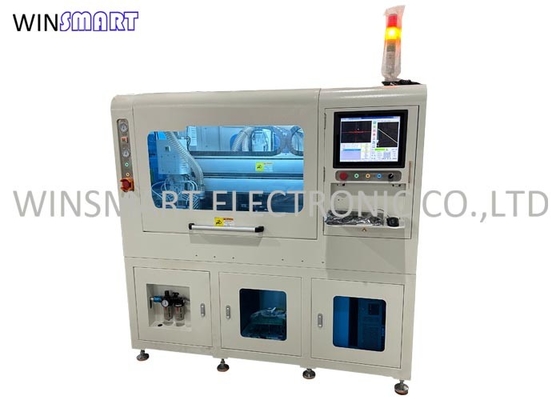

2 Station Full Auto V Cut PCB Depaneling Machine Without Operator
CCD Camera System 2 Station Full Automatic V Cut PCB Depaneler Without Operator
Full Automatic V Cut PCB Depaneler Description:
This machine is an on-line full-automatic equipment, which can be connected to PCB loader machine.
It adopts the high-speed rotation of the saw blade and automatic cutting according to the programs.
The equipment is designed on-line, which can automatically locate, cut and vacuum, with high production efficiency and stable quality.
Windows 10 operating system, visual programming program, mark point automatic correction system, high pixel camera to display the cutting path.
Full Automatic V Cut PCB Depaneler Features:
1. Two separated spindles for both V-cut and milling joints panels cutting.
2. Two rotateable tables for high volume production to save production cost.
3. Top dust cleaning system to make workshop clean.
4. Auto feeding conveyor and auto output conveyor without operators.
5. Cutting edge is smooth without burr and bending.
6. Waste PCB collection design.
Full Automatic V Cut PCB Depaneler Specification:
| Item | SMTID2 |
| Working area | 300x300mm, 0-80mm(Z) |
| CCD Camera | Yes |
| Spindle | China Brand |
| Screw rod, guide rail, module | China Brand |
| Servo Motor | Panasonic |
| Electrostatic eliminator | ADK-801ADK-801 |
| PC | Industrial Grade |
| Motion control card | PI9074 |
| monitor | 17 inch |
| Operating system | Windows 10 |
| Spindle speed | 40000RPM |
| XYZ drive speed | XY.800mm/s, Z.300mm/s |
| Cutting speed | 0-80mm/s |
| Cutting accuracy | ±0.05mm |
| Overall power | 5KW |
| Working platform | Rotating tray can cut in two directions |
| Spindle cooling system | Air cooling |
| Vacuum cleaner power | 3.5kw 380V,3-Phase(optional top and bottom vacuum cleaning) |
| Air pressure | 0.5-0.7MPa |
| Noise control | <80 dB |
| Safety device | Safety door and sensor |
| Operation mode | Inline |
| PCB Loading | Adjustable feeding conveyor |
| Automatic fault detection and maintenance mode | Self diagnosis function, real-time error information display and intuitively query the status of each IO port for troubleshooting |
| Technical support and training | Provide equipment operation, programming, hardware maintenance and training services |
| Vision system | CCD visual positioning correction system |
| Adjustable height | 50-70mm |
| Warning light | Tricolor lamp |
| Working range protective cover | Blind protection mode of hexahedral door |
| Dimension | 1000(L)x1010(W)x1860(H)mm |
| Weight | About 1000kgs |
Full Automatic V Cut PCB Depaneler Working Tables:
When the left table 0 degree direction cutting is finished, the table rotates to 90 direction for cutting.
When the whole panel on the left table cutting is finished, fixture comes out with separated PCBA for picking.
Then the right table goes to the cutting position for 0 degree direction cutting, after it is finished, right table rotates 90 degree for cutting.
In this way, the machine keep cutting to improve capacity for high volume applications.
