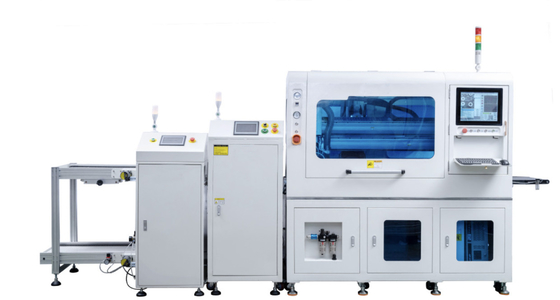

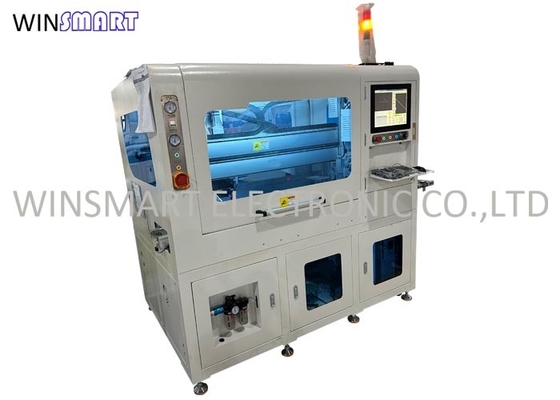

Precision 0.05mm PCB Depaneling Router Machine Cutting Tab and V-cut Boards
PCB Depaneling Router Machine Introduction:
PCB depaneling router is mainly used for the separation of PCBA boards assembled with PCBA.
This PCB router has two working spindles, one with saw blade cuts V-cut boards, another one with milling cutter cuts tab boards.
And it has 300mm/s cutting speed to meet high volume production capacity.
The most important is that this depanelizer has the lowest cutting stress to protect components mounted on the boards.
The machine comes with automatic feeding coveyor and ESD output conveyor / customized unloading fixture.
It saves 5-6 workers for manufacturer.
TWO SPINDLES FOR BOTH V-CUT AND TAB BOARDS
TWO SPINDLES FOR TAB BOARDS
PCB Depaneling Router Machine Features:
PCB Depaneling Router Machine Advantages:
1. Low cutting stress for both V-cut and tab PCBA depaneling.
2. PC and CCD vision system for precise programming and operation.
3. Top dust collection system for dust free workshop.
4. Full automatic working mode for high volum products.
5. Adjustable feeding conveyor and ESD flat conveyor belt for separated PCB collection.
6. Software is friendly.
PCB Depaneling Router Machine Specification:
| Model Number | SMTID2 |
| Machine Size | 1800(L) x 1500(W) x 2200(H)mm |
| Voltage | 220V/50Hz |
| Max PCB Size | 300x300mm (customizable) |
| PCB Thickness | 0.4-6mm |
| Feeding Mode | Automatic |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | 20,000-100,000rpm/min |
| Cooling Type | Self cooling |
| Dust Collection Mode | Top collection |
| Cutting Speed | 1-300mm/s |
| Cutting Accuracy | ±0.02mm |
| Knife | 0.8-3.0 routing bits, right rotation & saw blade |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Optional |
| Machine Power Rate | Total 5KW, includes 3KW vacuum cleaner |
| Machine Condition | 100% new |
| Warranty | 1 year |
| After-sale Service | 24 hours online support, oversea installation and training is available |
| Programming | Online, visual |
| Automatic Calibration Function | Mark point automatic calibration |
| Editing Function | Straight line, point, arc, circle |
| Axis Position Accuracy | 0.01mm |
| Cutting Precision | ±0.05mm |
| Barcode Scanning | Optional |
| Counting Function | Yes |
PCB Depaneling Router Machine Accessories:
| Item | Description | Brand | Quantity | Remark |
| 1 | Industrial PC | China | 1 | |
| 2 | Spindle and Driver | China | 1 | |
| 3 | Camera | China | 1 | |
| 4 | Screw rod, guide rail | TBI, HIWIN, SHAC | 1 | |
| 5 | Motion Card | China | 1 | 6 axis |
| 6 | System | Win 10 | 1 | |
| 7 | Servo Motor | Panasonic | 1 | |
| 8 | Sensor | OMRON | 9 | |
| 9 | Pneumatic components | AirTAC | 3 | |
| 10 | 3HP Vacuum cleaner | China | 1 | |
| 11 | Module | China | 6 | Grade C5 |
PCB Depaneling Router Machine Details:
Dual tables, sindles are working all the time for high volume productivity.
Automatic width adjustment PCB feedling rail.
Automatic tool change function, 5 bits storage.
SycoTec spindle 4033 is used for tab boards, max 100,000 rpm.
ESD flat belt conveyor for automatic PCB unloading.
PCB Depaneling Router Machine Appications:
PCB router machines are essential in electronics manufacturing across industries, including consumer electronics, automotive, medical, aerospace, and industrial automation. They provide precise, efficient, and low-stress PCB depaneling, ensuring high-quality products for modern electronic applications.
Reasons to Choose Us:
1. Early: we have a history of 20 years in the field of automation, with mature cases from hundreds of customers.
2. Stable: The main components of equipment are imported. The equipment weight over 700kg. Master the most mature production technology in the automation industry.
3. Professional: We have patented technologies, becoming a benchmark in the automation industry.
4. Fast: 1 hour-response to customer demands.
2 hours-provide a solution.
3 hours-arrive at the site to assist customers(<100kms) in troubleshooting the issue within 3 hours.
