Product Details:
|
| PCB Type: | Tab PCB | PCB Material: | FR4, Aluminum |
|---|---|---|---|
| PCB Thickness: | 0.8-3.0mm | Machine Condition: | 100% New |
| Fixture: | 2 | Warranty: | 1 Year |
| Working Area: | 350x400mm | Product Name: | Printed Circuit Board Router |
| High Light: | 60000rpm Printed Circuit Board Router,3HP Printed Circuit Board Router,Vacuum Cleaning System MCPCB Router |
||

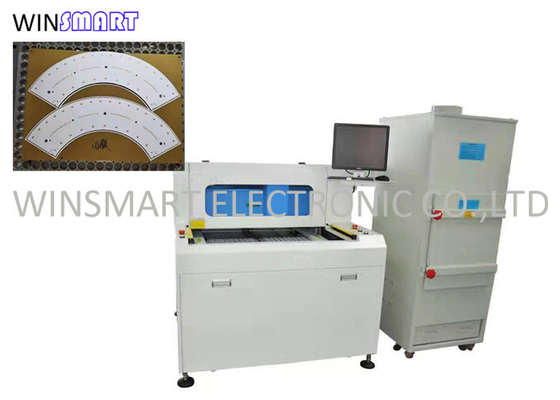

3HP Vacuum Cleaning System Printed Circuit Board Router For MCPCB
Printed Circuit Board Router Description:
1. Improve product quality, reduce cutting stress and prevent chip damage during cutting.
2. A variety of cutting paths can cut straight lines, arcs and circle, greatly reducing the restrictions on the PCB design.
3. The operation of PCB cutter routing machine is simple and easy, and the model can be switched (Switching Model: program switching, fixture switching)
4. The automatic PCB router machine has high cutting precision. The accuracy can reach ± 0.01mm to meet various cutting requirements.
Printed Circuit Board Router Characteristics:
1. Improve product quality and reduce scrap rate.
2. It is equipped with high pixel color CCD magnifying glass, auxiliary program teaching and editing functions, with higher accuracy, and the simulation can be modified in one step. Industrial LCD has clear image and large viewing angle.
3. Equipped with handheld teaching pendant. Program editing can be done manually or imported using G code. It has the functions of importing, exporting, copying board array, editing and modifying, so as to simplify the time and accuracy of program making.
4. Fully closed, transparent safety door, safe operation and easy observation.
5. Equipped with powerful dust collection filter and dust collector. The up-down suction method is optional and can solve the chip problem cleanly.
Printed Circuit Board Router Features:

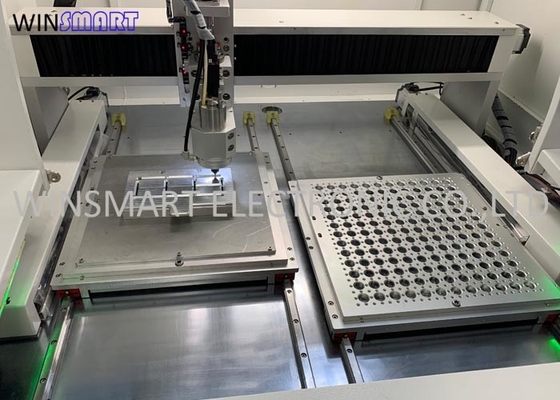

1. This PCB router has two-slide tables to do continuous cutting.
2. Lower stress to ensure smooth cutting edge.
3. Imported motor and spindle is used for noise free purpose.
4. Optional top and bottom vacuum cleaning sytem is available.
Printed Circuit Board Router Specifications:
| Dimensions(W*D*H) | 1150mm*1250mm*1325mm |
| Weight | 750KG |
| Height offset | 60~110mm |
| Motor type | JiaBao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 870mm*450mm*50mm |
| PCB fixation | standard,specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 350*400mm |
| PCB thick (max) | 5mm |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Power | 40W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Cutting speed(max.) | 100mm/s |
| Driving speed(max.) | 3000mm/s |
| Precision of cutting | 0.01mm |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
Printed Circuit Board Router Operation Process:
1. Check whether the equipment is powered on normally and confirm that the equipment has been reset and waiting for operation.
2. The operator shall determine the direction and positive and negative directions of the PCB board, place the PCB board on the special fixture, press it gently with the palm of his hand, confirm that the PCB board has been placed, put down the gland and ensure that the PCB board has been tightly covered.
3. Use the visual camera to adjust the programmed cutting path and confirm to save.
4. Press the start button, the PCB router starts to work, the vacuum cleaner, spindle, electrostatic removal, etc. will also start automatically, and the milling cutter divides boards according to the programmed cutting path.
5. Complete the whole assembly and PCB depaneling, the workbench will exit automatically, open the gland, make sure that the separated PCB board is not damaged, manually remove the product, replace the new PCB board, cover the gland, and click the start button to separate.
6. Repeat step 4.5 until all products are finished.
