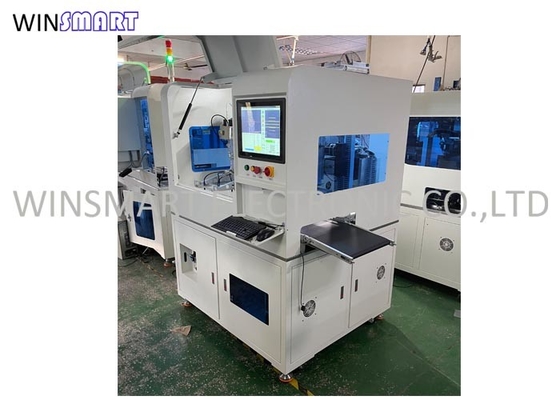

Auto Feeding PCB Depaneling Tool Visual CCD System PCB Separator

Description
PCB Material: RF4, Aluminum PCB Conntection: V-cut, Tab
PCB Feeding: Auto Cutting Precision: ±0.05mm
PCB Collection: ESD Flat Belt Name: PCB Depaneling Tool
High Light:

Auto Feeding PCB Depaneling Tool

,

Visual CCD System PCB Separator

,

CCD System PCB Depaneling Tool

Auto Feeding PCB Depaneling Tool Visual CCD System PCB Separator





PCB Depaneling Tool Descsription:

PCB depaneling tool is mainly used for the separation of PCBA boards assembled with PCBA. In general, PCBA are separated after welding and then tested. Generally speaking, SMT chip processing plant will not separate the circuit board, but directly deliver the panel to the customer. In some small and medium-sized PCBA processing plants, the method of manual pcb breaking is adopted, but PCBA plate is easy to be damaged and it is safer to use machine depaneling.



PCB Depaneling Tool Features:

1. Low cutting stress for both V-cut and tab PCBA depaneling.

2. PC and CCD vision system for precise programming and operation.

3. Easy programming.

4. Top dust collection system for dust free workshop.

5. Full automatic working mode for high volum products.

6. Adjustable feeding conveyor and ESD flat conveyor belt for separated PCB collection. Automatic PCB packaging is optional.

7. Visual programming for easier operation.

8. Optional spindles are available for both V-cut and Tab panels.

9. Lowest cutting stress to improve cutting effect.



PCB Depaneling Tool Specification:

Model Number SMTID3
Machine Size 1800(L) x 1500(W) x 2200(H)mm
Voltage 220V/50Hz
Max PCB Size 300x300mm (customizable)
PCB Thickness 0.4-6mm
Feeding Mode Automatic
PCB Positioning Customized fixture
Programming Vision teaching, inline programming
Cutting Spindle 20000-60000rpm/min
Cooling Type Self cooling
Dust Collection Mode Top collection
Cutting Speed 1-100mm/s
Cutting Accuracy ±0.02mm
Knife 0.8-3.0 routing bits, right rotation & saw blade
Repeat Accuracy ±0.02mm
Control System Industrial PC
Spindle Optional
Machine Power Rate Total 5KW, includes 3KW vacuum cleaner
Machine Condition 100% new
Warranty 1 year
After-sale Service 24 hours online support, oversea installation and training is available
Programming Online, visual
Automatic Calibration Function Mark point automatic calibration
Editing Function Straight line, point, arc, circle
Axis Position Accuracy 0.01mm
Cutting Precision ±0.05mm
Barcode Scanning Optional
Counting Function Yes
