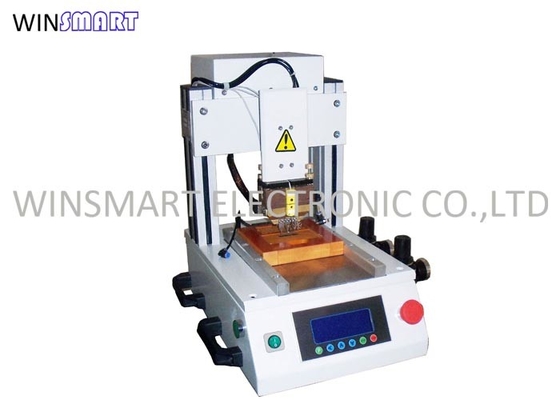

0.2 Pin Pitch Hot Bar Soldering Machine For FPC FFC PCB Soldering

0.2 Pin Pitch Hot Bar Soldering Machine For FPC FFC PCB Soldering
0.2 Pin Pitch Hot Bar Soldering Machine For FPC FFC PCB Soldering

Large Image :  0.2 Pin Pitch Hot Bar Soldering Machine For FPC FFC PCB Soldering

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTS01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/Set
Packaging Details: Plywood case
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

0.2 Pin Pitch Hot Bar Soldering Machine For FPC FFC PCB Soldering

CE Approval: Yes Fixture Quantity: 1
Voltage: 220V/110V Temperature Accuracy: ±2°C
Thermode Quantity: 1 Name: Hot Bar Soldering Machine
High Light:

0.2 Pin Pitch Bar Soldering Machine


Hot Bar FPC Soldering Machine


Hot Bar FFC Soldering Machine

Hot Bar Soldering Machine 0.2 Pin Pitch For FPC FFC PCB Soldering



Hot Bar Soldering Machine Introduction:

1. Hot press is also called bonding machine. According to the different media of hot pressing, it can be divided into soldering, ACF bonding machine (opposite conductive tape), ACP (opposite conductive glue), TBF (hot melt adhesive film).

2. It is applicable to the connection of FPC (flexible circuit board), HSC (Zebra paper), tab and LCD and PCB. As the pitch of PCB or FPC in consumer electronic products tends to be smaller, the traditional soldering process has been difficult to meet the requirements of extremely fine hot pressing, so the ACF process has been gradually applied by mobile phone designers.


Hot Bar Soldering Machine Working Principle:

Pulse heating principle: due to the special design of the welding head surface, the resistance of the welding surface is very small, and the current will pass through the section with the smallest resistance. By constantly changing the voltage and adjusting the current level, the welding head can quickly heat up. The pulse current refers to the on and off frequency ratio of the current. The larger the pulse ratio, the larger the current output, and the faster the temperature rise of the welding joint.


Hot Bar Soldering Machine Features:

1. Use pulse heating technology, the temperature control is accurate, and the temperature sampling frequency is 0.1s

2. Single working platform, rotary working platform, left and right mobile platform and other diversified working modes

3. Multi stage temperature rise control

4. Real time temperature curve display

5. Silicone Tape indexing mechanism

6. CCD vision system provides accurate alignment

7. Large capacity program pre storage

8. Touch operation interface, program password protection


Hot Bar Soldering Machine Specification:

Machine size 500×500×600mm
Working area Max 200*170mm
Machine weight 62Kg
Working air pressure 0.6-0.8Mpa
Fixture quantity 1
Thermode head size Max 40*3mm
Welding precision pitch 0.2mm
Pressing time 1~99.9s
Temperature settings RT~500℃ tolerance ±5℃
Welding pressure 1~20Kg
Temperature settings Two
Working environment 10-60℃,40%-95%
Power supply AC220V±10% 50HZ,2200W
Alignment mode CCD + LCD Monitor
Feeding mode Manual
Starting mode Press start button
Rotation Platform Cylinder control,tolerance<0.02mm
Thermode material Molybdenum alloy
Thermode size Max 60mm long
Origin China
Fixing mode Customized fixture
Application FFC to PCB, FPC to PCB, Wires to PCB
Warranty 12 months



Hot Bar Soldering Machine Application Field:

1. Mobile phone manufacturer

2. Touch screen manufacturer

3. Computer

4. Printer, etc.
