Product Details:
|
| PCB Feeding: | Auto | PCB Unloading: | Auto |
|---|---|---|---|
| Spindle Speed: | 60000RPM | PCB Positioning: | Customized Fixture |
| Working Table: | 2 | Name: | CNC Milling Cutter PCB Router |
| High Light: | ESD Automatic CNC Milling Cutter,Dual Table PCB CNC Milling Cutter,Full Automatic PCB Router Machine |
||

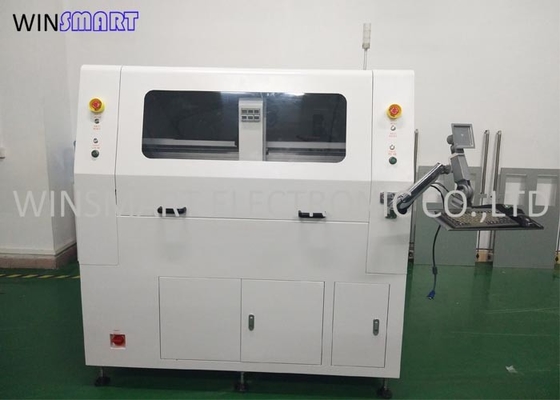

ESD Dual Table Full Automatic CNC Milling Cutter PCB Router Machine
CNC Milling Cutter PCB Router Feature:
1. Cutting path full closed loop, real-time error tracking, feedback, compensation, it is a high-end intelligent system.
2. Using imported split PLC, breaking the traditional computer-based board PLC control card, higher stability and stronger anti-interference.
3. Simple operation and higher safety performance, 0.5-0.7 seconds per cutting point.
4. Bottom vacuum cleaning system, dust free.
5. Dual working tables for high working capacity.
CNC Milling Cutter PCB Router Specification:
| Model | SMT-IR500 |
| Machine dimension | 1550(W)x1200(D)x1600(H) |
| Machine weight | 900kgs |
| Motor | 7-axis AC servo motor |
| Repeatability | ±0.02mm |
| Cutting precision | ±0.05mm |
| Resolution | ±0.02mm |
| Working tables | 2 |
| PCB positioning way | pin holes or waste PCB edge |
| Panel feeding/unloading | automatic |
| Milling area | 300x350mm |
| PCB thickness | 0.3-3mm |
| Spindle | SycoTec |
| Max spindle speed | 80000rpm/ ESD |
| Cooling way | air cooling |
| Routing bits | handle 3.175mm diameter |
| Routing bit replacing way | manual |
| Laser altimetry system | Self-contained vacuum blowing function |
| Vacuum system capacity | 63L/minute |
| Cleaner power | 3HP air cleaner |
CNC Milling Cutter PCB Router Working Flow:
1. PCBA automatic feeding from OK/NG buffer.
2. Sucking system picks PCBA and put the panel on the left table.
3. PCBA fixed on the left table by the locking system and start depaneling.
4. Sucking system picks PCBA and put the panel on the right table at the same time.
5. PCBA fixed on the right table by the locking system and start depaneling.
6. When the separated PCBA from left table are finished, sucking system picks up single boards and put them on the flat unloading conveyor for next processing.
7. Milling cutter start cutting right table boards when it finish left table job.
8. Waste PCB will be thrown into the scrap box.
9. Repeat above steps and keep depaneling all the time.
CNC Milling Cutter PCB Router Operation System:
1. Operation interface: Windows 10
2. Visual system: High resolution digital camera / Cognex Vision System
3. Programming:
a. AOI scanning/CCD grab coordinates
b. Angled film copy function
c. Modify coordinates, ccd automatically sync
d. Other functions: Tool diameter compensation, Dust collector cleaning tips

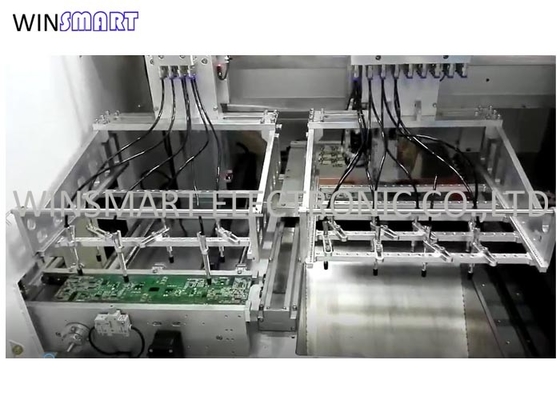

CNC Milling Cutter PCB Router Structure:
