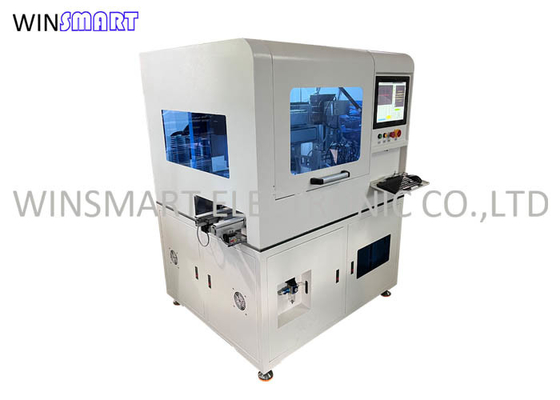

Adjustable Feeding Conveyor Inline PCB Depaneling Machine Multi Function

Adjustable Feeding Conveyor Inline PCB Depaneling Machine Multi Function
Adjustable Feeding Conveyor Inline PCB Depaneling Machine Multi Function
Adjustable Feeding Conveyor Inline PCB Depaneling Machine Multi Function Adjustable Feeding Conveyor Inline PCB Depaneling Machine Multi Function

Large Image :  Adjustable Feeding Conveyor Inline PCB Depaneling Machine Multi Function

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTID3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1-35000
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

Adjustable Feeding Conveyor Inline PCB Depaneling Machine Multi Function

Description
PCB Material: RF4, Aluminum PCB Thickness: 3.0mm
Spindle Speed: 20000-60000RPM Cutting Precision: ±0.05mm
Working Table: 1 Name: Inline PCB Depaneling Machine
High Light:

Inline PCB Depaneling Machine

,

Multi Function PCB Depaneling Machine

,

Adjustable Feeding Conveyor PCB Separator

Adjustable Feeding Conveyor Multi-function Inline PCB Depaneling Machine





Inline PCB Depaneling Machine Introduction:

1. This PCB depaneling machine is an on-line full-automatic equipment, which can be connected to PCB loader machine.

2. It adopts the high-speed rotation of the saw blade and automatic cutting according to the programs.

3. The equipment is designed on-line, which can automatically locate, cut and vacuum, with high production efficiency and stable quality.

4. Windows 10 operating system, visual programming program, mark point automatic correction system, high pixel camera to display the cutting path.



Inline PCB Depaneling Machine Advantange:

1. Low cutting stress for both V-cut and tab PCBA depaneling.

2. PC and CCD vision system for precise programming and operation.

3. Easy programming.

4. Top dust collection system for dust free workshop.

5. High production capacity for high volum products.

6. Adjustable feeding conveyor for different PCB width.

7. ESD flat outout conveyor.

8. Optional tray collection function.



Inline PCB Depaneling Machine Features:

1. Realize unmanned production, which is suitable for all kinds of rigid PCBA depaneling, covering V-cut and tab boards.
2. Programming with compensation and dust collection.
3. 2 spindles installed, one for V-cut depaneling, the other is for milling bridge depaneling.

4. Less than 500ustrain cutting stress to protect components from damage during cutting.

5. Optional QR code and barcode tracking system.

6. Friendly software, easy to operate and program



Inline PCB Depaneling Machine Specification:

Model Number SMTID3
Machine Size 1800(L) x 1500(W) x 2200(H)mm
Voltage 220V/50Hz, 2.5KW
Max PCB Size 300x300mm (customizable)
PCB Thickness 0.4-6mm
Feeding Mode Automatic
PCB Positioning Customized fixture
Programming Vision teaching, inline programming
Cutting Spindle 20000-60000rpm/min
Cooling Type Self cooling
Dust Collection Mode Top collection
Cutting Speed 1-100mm/s
Cutting Accuracy ±0.02mm
Routing Bit 0.8-3.0 Diameter, right rotation
Repeat Accuracy ±0.02mm
Control System Industrial PC
Spindle Germany SycoTec 4025HY



Inline PCB Depaneling Machine Software:

Software rights management Password protection
Programming Visual interface, cutting path, dynamic simulation
Automatic calibration function Mark point automatic calibration
Programming mode Online
Editing function Straight line
Program storage Select the storage location as needed
Tool diameter compensation Various compensation methods are available
Tool detection Yes, automatically alarms and stops after tool breaking
Motor overheating detection Has overload, overheating, low voltage and other protection
Servo overload detection Overload, low voltage and whether the line is normal
Spindle life tracking Automatic
Counting Yes
Machine error record Automatically memorizes all alarm records
Axis position accuracy 0.01mm
Cutting precision ±0.05mm
Barcode scanning Optional



Inline PCB Depaneling Machine Shipping Configuration:

1. Inline PCB separator x 1 unit

2. Vacuum cleaner x 1 unit

3. Saw blade x 5 pc or routing bit x 10 pc

4. Instruction manual x 1 pc

5. Operation video and setup video
