Product Details:
|
| Condition: | 100% New | PCB Material: | FR4, Aluminum |
|---|---|---|---|
| PCB Thickness: | 0.8-3.0mm | Inspection Video: | Provided |
| Table: | 2 | Certificate: | CE |
| Working Area: | 350x350mm | Product Name: | PCB Router Machine |
| Highlight: | Milling PCB Router Machine,Windows 10 Milling Cutter,FR4 PCB Router Machine |
||

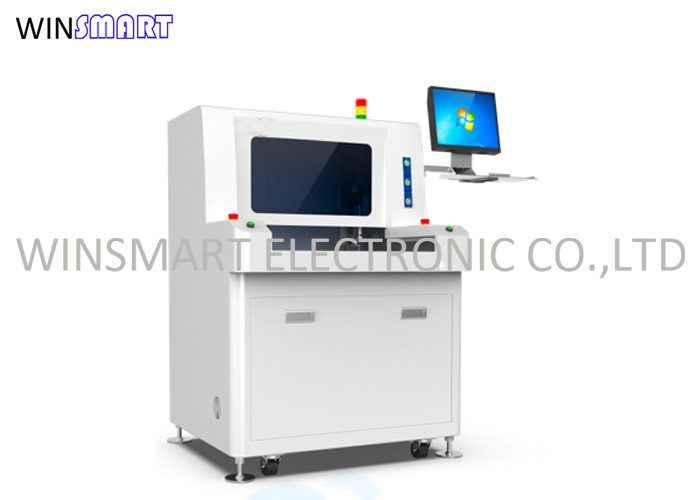

Windows 10 High Efficiency Milling Cutter PCB Router Machine
PCB Router Machine Overview:
The Milling Cutter PCB Router Machine is a specialized machine designed for precise and efficient routing of Printed Circuit Boards (PCBs). It incorporates a CCD (Charge-Coupled Device) system for accurate positioning and a high-speed milling cutter for precise cutting and shaping of PCBs. The machine is equipped with Windows 10 operating system, providing a user-friendly interface and advanced control features.
PCB Router Machine Features:
1. This PCB router has two-slide tables to do continuous cutting.
2. The machine is used for milling joints boards depaneling.
3. Lower stress to ensure smooth cutting edge.
4. Spindle speed is up to 40000rpm.
5. Standard bottom vacuum cleaning sytem, dust free.
6. The machine has blade self checking function.
7. Could import gerber for programming.
PCB Router Machine Specifications:
| Overall | |
| Dimensions(W*D*H) | 1150mm*1250mm*1325mm |
| Weight | 750KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 870mm*450mm*50mm |
| Work station | |
| PCB fixation | standard,specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 350*400mm |
| PCB thick (max) | 5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 40W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 100mm/s |
| Driving speed(max.) | 3000mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button |
PCB Router Machine Functions:
1. Avoid tin crack, parts damage, internal line fault of multilayer board, unsmooth segmentation surface and other problems caused by manual folding.
2. Avoid using punching or folding to solve the stress problems caused by machinery.
3. It is suitable for arc and wire cutting of finished plate to meet the needs of customers' product variability
PCB Router Machine Advantages:
1. Reduce the damage to components caused by excessive human contact with PCBA
Such as static electricity
2. Reduce damage caused by excessive stress
Such as tin crack, multilayer plate fault, etc.
Required Information for Solution Recommendation:
1. PCB panel photos
2. Panel dimension and thickness
3. UPH
Please feel free to contact us for more details.
