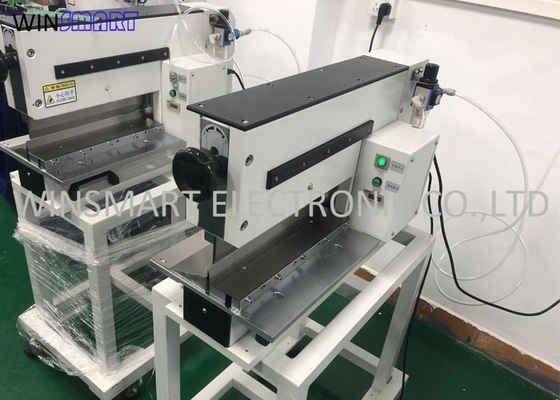

Air Driven Pneumatic PCB Depanelization Machine PCB Separator

Brand Name:	Winsmart
Model Number:	SMTPD2
MOQ:	1 set
Price:	USD1-10000/set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

PCB Material:

FR1, FR4, CEM1, CEM3, MCPCB

PCB Thickness:

0.4-5mm

Max Component Height:

Blade Material:

SKH-9

Advantage:

Low Cutting Stress

Cutting Capacity:

330mm(Max 600mm)

Name:

PCB Depanelization Machine

Supply Ability:

200 sets per month

Highlight:

Pneumatic PCB Depanelization Machine

Air Driven PCB Depanelization Machine

CEM3 PCB Separator

Product Description

Air Driven Pneumatic PCB Depanelization Machine PCB Separator

PCB Depanelization Features:

1. It can separate the board at one time. Not only the installation is convenient, but also the operation setting is simple, which can save many employees, time and labor.

2. It takes up less space and saves operation time. This machine is mainly developed for the intermittent production of products in the LED lighting industry to meet its strict requirements for deformation.

3. This machine is also suitable for copper lamp board, cob board and other board types.

4. It has excellent PCB separator performance and high cost performance.

5. Less than 200u strain cutting stress to protect components.

PCB Depanelization Specification:

Model	SMTPD2
Machine Dimension	720x300x440mm / 520x300x440mm / 500x300x440mm
Max Cutting Length	330mm / 200mm / 130mm
PCB Material	FR4, MCPCB, CEM, Copper Boards
Air Pressure	0.4-0.7MPa
PCB Thickness	0.3-3.5mm
Power	110/220V
Machine Weight	130kgs / 100kgs / 80kgs

PCB Depanelization Customized Blade For The Boards With Components Mounted Near V-cut:

Air Driven Pneumatic PCB Depanelization Machine PCB Separator 0
