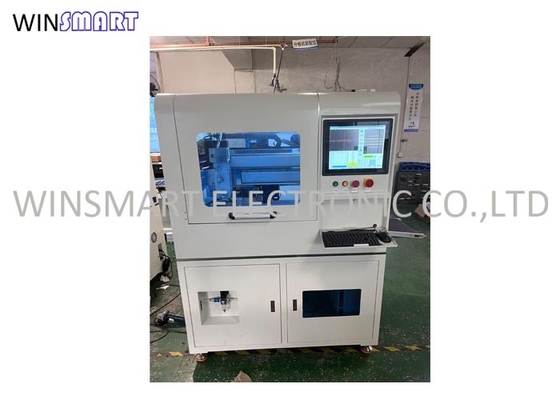

Inline V Cut PCB Depaneling Machine Automatic PCB Depanelizer

Description
Condition: 100% New Cutting Stress: Less Than 200 U Strain
PCB Thickness: 0.4-3mm PCB Dimension: 300x300mm(standard)
PCB Connection: Milling Bridge And V-cut Name: Automatic PCB Depanelizer
High Light:

Inline V Cut PCB Depaneler

,

Milling Bridge PCB Depaneling Machine

,

Inline V Cut Automatic PCB Depanelizer

Inline V Cut PCB Depaneling Machine Automatic PCB Depanelizer


Automatic PCB Depanelizer Overview:
1. The automatic PCB depanelizer is an in-line full automatic equipment, which has automatic feeding and unloading conveyors.
2. The machine uses the high-speed rotation of the saw blade and automatic cutting according to the programs.
3. It has CCD and camera system for precise depaneling, easy for programming.

Inline PCB Depaneling Separator Features:
1. Two separated spindles for both V-cut and milling joints panels cutting.
2. PC and CCD vision system for easier programming.
3. Programming with compensation and dust collection.
4. It comes with 3HP vacuum cleaner.
5. Low cutting stress to protect components from damage during cutting.
6. It can connect PCB loader and unlader for automatic processing in SMT lines.

Automatic PCB Depanelizer Specification:

Item SMTID3
Working area 250x200mm, 0-80mm(Z)
CCD 540
Spindle China Brand
Screw rod, guide rail, module China Brand
Servo Motor Panasonic
Electrostatic eliminator ADK-801ADK-801
PC Industrial Grade
Motion control card PI9074
monitor 17 inch
Operating system Windows 10
Spindle speed 40000RPM
XYZ drive speed XY.800mm/s, Z.300mm/s
Cutting speed 0-80mm/s
Cutting accuracy ±0.05mm
Overall power 5KW
Working platform Rotating tray can cut in two directions
Spindle cooling system Air cooling
Vacuum cleaner power 3.5kw 380V,3-Phase(optional top and bottom vacuum cleaning)
Air pressure 0.5-0.7MPa
Noise control <80 dB
Safety device Safety door and sensor
Operation mode Inline
PCB Loading Adjustable feeding conveyor
Automatic fault detection and maintenance mode Self diagnosis function, real-time error information display and intuitively query the status of each IO port for troubleshooting
Technical support and training Provide equipment operation, programming, hardware maintenance and training services
Vision system CCD visual positioning correction system
Adjustable height 50-70mm
Warning light Tricolor lamp
Working range protective cover Blind protection mode of hexahedral door
Dimension 1000(L)x1010(W)x1860(H)mm
Weight About 1000kgs


Automatic PCB Depanelizer Software Introduction:

Software rights management Password protection
Programming Visual interface, cutting path, dynamic simulation
Automatic calibration function Mark point automatic calibration
Programming mode Online
Editing function Straight line
Program storage Select the storage location as needed
Tool diameter compensation Various compensation methods are available
Tool detection Yes, automatically alarms and stops after tool breaking
Motor overheating detection Has overload, overheating, low voltage and other protection
Servo overload detection Overload, low voltage and whether the line is normal
Spindle life tracking Automatic
Counting Yes
Machine error record Automatically memorizes all alarm records
Axis position accuracy 0.01mm
Cutting precision ±0.05mm
Barcode scanning Optional


Automatic PCB Depanelizer Configuration List:
1. Inline PCB depaneling separator x 1 unit
2. Vacuum cleaner x 1 unit
3. Saw blade x 5 pc
4. Instruction manual x 1 pc
5. Operation video and setup video

Automatic PCB Depanelizer Electrical Introduction:
1. The electric control wiring comply with the requirements of the national standard, and the trunking is made of flame-retardant materials.
2. The equipment has safety protection and leakage protection. The ground wire and relay are equipped with nano resistance to prevent the contact from sparking.
3. The main contactor of the equipment can be solid-state contactor, which can effectively prevent sparks and interference sources.
4. High flexible cables are used for equipment tank chain cables to ensure more than five million reciprocating drives.
5. Main control, strong current, circuit, signal and IO all have consistent tube code identification, which is convenient for troubleshooting and maintenance.
6. The dangerous parts of the equipment are provided with safety warning signs. Including incoming line, outgoing line, power supply and ground wire.
7. This automatic PCB depanelizer has complete IO status, safety door opening alarm function, etc. And can prompt in the software.
