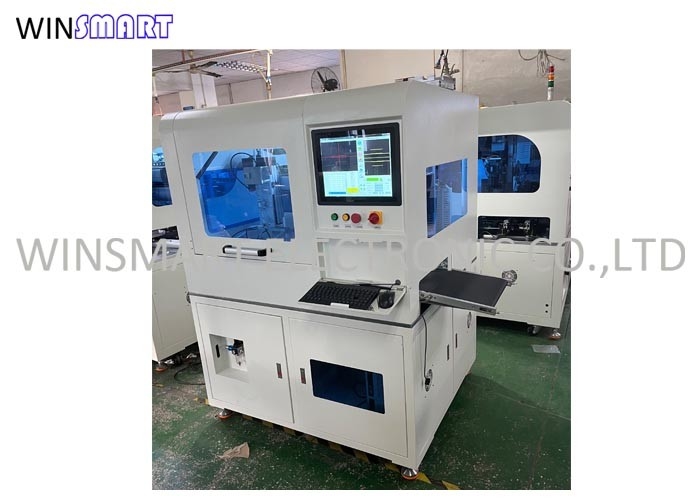

Inline PCB Depaneling Separator For Multi Type PCB Depaneling

Inline PCB Depaneling Separator For Multi Type PCB Depaneling
Inline PCB Depaneling Separator For Multi Type PCB Depaneling
Inline PCB Depaneling Separator For Multi Type PCB Depaneling Inline PCB Depaneling Separator For Multi Type PCB Depaneling

Large Image :  Inline PCB Depaneling Separator For Multi Type PCB Depaneling

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTID3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

Inline PCB Depaneling Separator For Multi Type PCB Depaneling

Description
Warranty: 1 Year CCD System: Yes
PCB Type: Both Tab And V-cut Boards Mode: Inline
Max Panel: 300x300mm(Could Be Customized Made) Name: Inline PCB Depaneling Separator
High Light:

Inline PCB Depaneling Separator

,

V Cut PCB Depaneling Separator

,

80mm/s PCB Separator Machine

Inline PCB Depaneling Separator for Multi Type PCB Depaneling





Inline PCB Depaneling Separator Description:

This inline PCB depaneling separator machine is an in-line full automatic equipment, which can be connected to PCB loader machine. It adopts the high-speed rotation of the saw blade and automatic cutting according to the programs.The inline PCB separator is designed on-line, which can automatically locate, cut and vacuum, with high production efficiency and stable quality. It has mark point automatic correction system, high pixel camera to display the cutting path.The most important is that this PCB separator machine works for both tab panels and v-cut panels cutting.



Inline PCB Depaneling Separator Features:
1. Realize unmanned production, which is suitable for all kinds of rigid PCBA depaneling, covering V-cut and tab boards.
2. PC and CCD vision system.
3. Programming with compensation and dust collection.
4. 2 spindles installed, one for V-cut depaneling, the other is for milling bridge depaneling.

5. Less than 500ustrain cutting stress to protect components from damage during cutting.

6. Optional QR code and barcode tracking system.

7. Friendly software, easy to operate and program

8. Smooth cutting edge, and dust-free.



Inline PCB Depaneling Separator Feeding and Unloading Design:

Inline PCB Depaneling Separator For Multi Type PCB Depaneling 0

Inline PCB Depaneling Separator For Multi Type PCB Depaneling 1



Inline PCB Depaneling Separator Cutting Structure:

The servo motor is matched with a precise screw driven to ensure cutting speed and precision. And saw blade cutter is driven by a high speed brushless motor, which lower cutting stress effectively. The inline PCB depaneling separator uses 2 separated spindles, which are suitable for all FR4 and Aluminum PCBA depaneling, covering V-cut and milling bridge connection panels.









Inline PCB Depaneling Separator Specification:

Item SMTID3
Working area 250x200mm, 0-80mm(Z)
CCD 540
Spindle China Brand
Screw rod, guide rail, module China Brand
Servo Motor Panasonic
Electrostatic eliminator ADK-801ADK-801
PC Industrial Grade
Motion control card PI9074
monitor 17 inch
Operating system Windows 10
Spindle speed 40000RPM
XYZ drive speed XY.800mm/s, Z.300mm/s
Cutting speed 0-80mm/s
Cutting accuracy ±0.05mm
Overall power 5KW
Working platform Rotating tray can cut in two directions
Spindle cooling system Air cooling
Vacuum cleaner power 3.5kw 380V,3-Phase(optional top and bottom vacuum cleaning)
Air pressure 0.5-0.7MPa
Noise control <80 dB
Safety device Safety door and sensor
Operation mode Inline
PCB Loading Adjustable feeding conveyor
Automatic fault detection and maintenance mode Self diagnosis function, real-time error information display and intuitively query the status of each IO port for troubleshooting
Technical support and training Provide equipment operation, programming, hardware maintenance and training services
Vision system CCD visual positioning correction system
Adjustable height 50-70mm
Warning light Tricolor lamp
Working range protective cover Blind protection mode of hexahedral door
Dimension 1000(L)x1010(W)x1860(H)mm
Weight About 1000kgs





Inline PCB Depaneling Separator Configuration List:

1. Inline PCB depaneling separator x 1 unit

2. Vacuum cleaner x 1 unit

3. Saw blade x 5 pc

4. Instruction manual x 1 pc

5. Operation video and setup video
