|Working Station:||2||PCB Connection:||Milling Joints|
|PCB Material:||FR4 And MCPCB||Application:||Tab PCBA Panel|
|Cutting Precision:||±0.05mm||Routing Bit:||Dia 0.8-2.5mm|
|CE Approval:||Yes||Product Name:||Automatic PCB Cutting Machine|
Automatic PCB Cutting Machine,
FR4 MCPCB PCB Cutting Machine,
800u Strain PCB Router Machine
Automatic PCB Cutting Machine Less than 800u Strain PCB Router Machine
Automatic PCB Cutting Machine Description:
In order to improve the output of printed circuit board (PCB) manufacturing and the linear speed of surface mount (SMT), the printed circuit board is usually designed as a large board, which will be divided into many smaller single PCB small boards by using PCB depaneling machine equipment in the final product. This large PCB board can be called panel. This large panel is divided into small pieces. In different product processes, it may be divided after SMT, after ICT, after welding through-hole SMT, or before the final product assembly.
Automatic PCB Cutting Machine Features:
1. High speed spindle: the high-speed motorized spindle adopts the imported spindle motor widely used in the industry's high-end PCB depaneling router. The spindle has the advantages of high speed (60000rpm / min), long service life, convenient loading and unloading, smooth cutting surface and no burrs. It is also equipped with the original spindle frequency converter to make the spindle motor have longer service life, higher cutting force distance and lower temperature rise effect.
2. Vision system: high pixel color CCD and large magnification lens, which can assist program teaching and editing simulation functions. The automatic mark positioning correction system improves the cutting accuracy, prevents the wrong cutting of the substrate when the board is not in place, and makes it faster to copy the left and right programs and switch models. The function of reading bar code can be selected to read, save or upload 1D / 2D bar code, which is convenient for traceability and digital management.
3. Vehicle positioning: PCBA circuit board realizes high-precision cutting, has fool proof inspection, and the performance of the line body is stable and reliable.
Automatic PCB Cutting Machine Specification:
|X/Y Cutting Speed||0 ~100mm/s|
|Repeatability precision||± 0.01mm|
|X/Y1/Y2/Z control mode||Industrial IPC and PC|
|X/Y1/Y2/Z driven mode||AC Servo Motor|
|Operation and data storage||PC|
|Cutting Precision||± 0.05mm|
|Spindle Speed||60000rpm(Germany KKAVO)|
|Air Pressure||4.5kg/cm 2|
|Mode||Up or Bottom|
|Up Cleaner Dimension||L650*W400*H1350mm|
|Bottom Cleaner Dimension||L665*W635*H1650mm|
Automatic PCB Cutting Machine Maintenance:
1. It is necessary to check whether there are materials falling from the electric cabinet. If so, it needs to be cleaned in time and maintained daily. About the maintenance method of the front and rear panels of the host: the front and rear panels of the host need to be wiped every day.
2. XYZ motor wiring and maintenance method of origin limit sensor: generally, the sensor shall be wiped with external dust and oil stain once a day.
3. About the maintenance method of the iron plate at the bottom of the main engine: if the parts fall, they need to be removed and replaced in time.
4. About the maintenance method of the three-point combination: check whether there is water in the water filter cup every day. If there is water, press the Yellow drain to remove it.
5. Maintenance method of spindle: wipe and clean the spindle when the machine stops working every day.
6. Maintenance method of vacuum cleaner: wipe and clean the vacuum cleaner after the machine stops working every day.

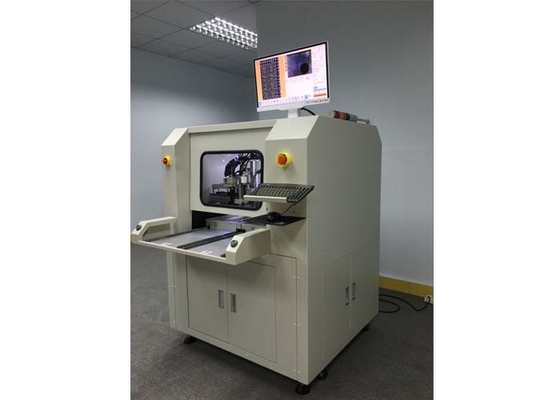

Automatic PCB Cutting Machine Photos:
