Product Details:
|
| Application: | FPC, PCB, Silicone, Glass, Etc | PCB Type: | All |
|---|---|---|---|
| Scan Range: | 40x40mm | Warranty: | 12 Months |
| Cutting Way: | Non-contact | Name: | PCB Singulation Machine |
| High Light: | 20W UV Laser Cutting Machine,PCB Singulation Machine 20W,FR4 PCB UV Laser Cutting Machine |
||

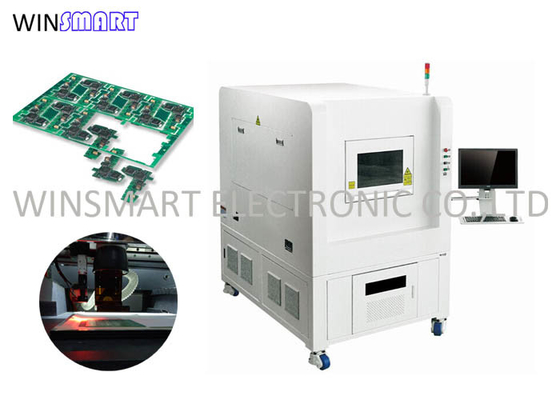

PCB Singulation Machine, 20W UV Laser Cutting Machine for FR4 PCB
PCB Singulation Machine Advantages:
1. No stress: special vehicles cooperate with laser processing, even if the components are very close to the cutting path, there is no stress effect.
2. Accurate thermal impact control: select the appropriate laser type according to different thermal impact requirements and cooperate with the appropriate laser processing parameters to minimize the thermal impact.
3. Cleaning processing: laser soot treatment is carried out in real time during the processing process to minimize the impact of soot on circuit components.
4. Multi function: it is not only suitable for precision cutting and drilling of soft plate, hard plate and soft hard combination plate of various thickness, but also suitable for cutting and drilling of other materials, such as glass, ceramics, thin metal plate and so on.
5. Safety: the processing area is completely closed to ensure the safety protection of the processing process; Designed in accordance with Chinese and EU electrical standards.
6. Automation: open ports are reserved to facilitate the adaptation of power control system, automatic loading and unloading system and MES system to meet various automation needs.
7. High speed and high precision: high speed and high precision X / Y / Z mobile system, perfect precision compensation mechanism, including single axis precision compensation plane precision compensation and scanning area precision compensation. The motion control system is equipped with contract axis CCD positioning system to ensure high speed and high precision in the processing process.
8. High degree of freedom: a variety of nanosecond, picosecond ultraviolet and green lasers are available to meet different processing needs.
9. Simple and fast operation: the software interface is simple, compatible with the conventional data format of the industry, simple operation and user-friendly.
10. Power detection system: power online detection system can be optional to ensure stable power and preserve the consistency of cutting quality.
PCB Singulation machine Features:
1. No burr, no dust, no noise, no cutting stress.
2. Easy for programming by importing dxf files.
3. Smooth cutting edge.
4. Workable for all kinds of PCB boards, covering v-scoring and tab panels.
5. No stress to protect precise components from damage.
6. Machine comes with water cooler and exhaust system.
7. Optional power tester is available.
PCB Singulation Machine Specification:
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Source | Optowave UV 15W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 460mmx460mm(Customizable) |
| Scanning Speed | 2500mm/s (max) |
| Working field | 40mmх40mm |
PCB Singulation Machine FAQ:
Q: What is the laser source?
A: We offer CO2, Green and UV laser. But different PCB material need to use different laser source.
Q: What is the life time of the laser head?
A: In generally, power will be lost after 3-5 years usage, then need to send it back to manufacturer for repairing.
Q: What is your service?
A: We provide 24 hours online service to solve technical questions, and we could also send our engineers to your factory to do on-site installation and training.
Q: What kind of PCB panel can be run on this machine?
A: The machine could cut line, arc, circle according to programs, it is available for all v-scoring FR4, tab FR4 and FPC panels.
