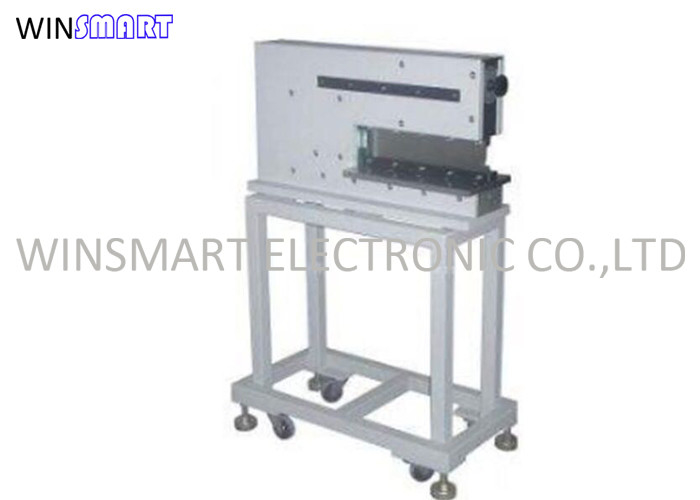

Low Stress V Cut PCB Depanelizer Machine For Aluminum PCB Singulation

Low Stress V Cut PCB Depanelizer Machine For Aluminum PCB Singulation
Low Stress V Cut PCB Depanelizer Machine For Aluminum PCB Singulation
Low Stress V Cut PCB Depanelizer Machine For Aluminum PCB Singulation Low Stress V Cut PCB Depanelizer Machine For Aluminum PCB Singulation

Large Image :  Low Stress V Cut PCB Depanelizer Machine For Aluminum PCB Singulation

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTPD2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1-10000/set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

Low Stress V Cut PCB Depanelizer Machine For Aluminum PCB Singulation

Description
Condition: 100% New PCB Thickness: 0.4-3.5mm
PCB Material: FR1, FR4, CEM, MCPCB Warranty: 1 Year
Cutting Length: 200/330/400/600mm Name: PCB Depanelizer
High Light:

V Cut PCB Depanelizer Machine 220V

,

Low Stress PCB Depanelizer Machine

,

Aluminum PCB Singulation V Cut Machine

Low Stress V Cut PCB Depanelizer Machine For Aluminum PCB Singulation





PCB Depanelizer Description:

The PCB depanelizer is pneumatically driven, it uses two horizontal knives to separate without stress and will not damage parts as close as 0.5mm from the score line-and the operator cannot misfeed the board. It has less than 500u strain to protect components from damage during cutting.



PCB Depanelizer Features:

1. Two linear blades are used for cutting like scissor, to avoid bending or tension.

2. Pneumatic footpedal control, cutting speed is up to operator.

3. Max 2mm clearance between upper and lower blades to ensure safety operation.

4. Air driven, clean and environmental.



PCB Depanelizer Specification:

Model SMTPD2
Machine Dimension 980x300x440mm
Max Cutting Length 600mm(Optional 200/330/400/600mm)
PCB Material FR1, FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Power 110/220V
PCB Type V-cut
Cutting Speed Adjustable
Warranty 1 year
Service 7/27 online support
Machine Weight 350kgs



PCB Depanelizer Details:

pcb depanelizer

V-cut PCB Depanelizer
