Product Details:
|
| Color: | White | PCB Material: | FR4, Aluminum |
|---|---|---|---|
| PCB Thickness: | 0.8-3.0mm | Advantage: | Easy Programming |
| Cutting Precision: | ±0.05mm | Working Area: | 400x400mm |
| Routing Bit: | Dia 0.8-2.5mm | Cutting Speed: | 100mm/s |
| Certificate: | CE | Product Name: | Mini PCB Router Machine |
| High Light: | Desktop PCB Depaneling Router Machine,CE Approval PCB Depaneling Router Machine,FR4 Material Pcb Cutting Machine |
||

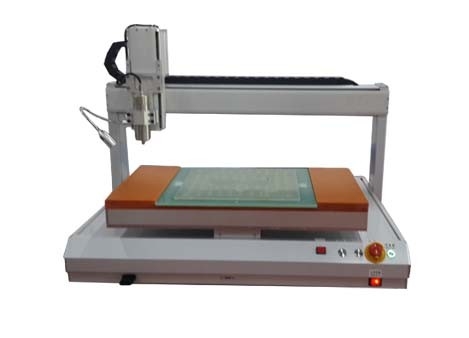

CE Approval Economic Desktop PCB Depaneling Router Machine
Desktop PCB Depaneling Router Machine Introduction:
This router machine comes with custom fixtures to meet the requirements of the industrial clients. By adjusting just two screws, an operator can easily set up custom fixtures without any delay and without any risk of a wrong setup. The factory has two desktop models, available with desktop robots for cutting panels. With a user-friendly programming, there is no need to learn the complicated programming language in order to operate the router.
Desktop PCB Depaneling Router Machine Features:
1. Bench-top single table PCB router with speeds up to 100mm/s and positioning speeds of 500mm/s.
2. Teaching box for programming, easy to program for new products.
3. Fixture cost is low, saving manufacturing cost.
4. This PCB router is cost-effective, working table dimension could be customized according to client's PCB boards.
5. Lower cutting stress for very smooth cutting edge.
6. It is workable for both FR4 and Aluminum PCB boards.
7. Max 1000 programs are available for storage.
Desktop PCB Depaneling Router Machine Specification:
| Model | SMTDR300 |
| PCB material | FR4, Aluminum |
| Drive system motor | servo / stepper motor |
| Spindle | domestic / imported spindle |
| Cutting performance | 500mm / s |
| Drive system repeatability | ± 0.02mm |
| Cutting speed | Max 100mm / S depends on PCB material and cutting quality |
| Resolution | ±0.01mm |
| XYZ Stroke | 400 x 400 x 100mm(standard) |
| PCB positioning | special or standard fixture |
| Handling method | manual mode |
| Thickness of circuit board | 0.4mm-4mm |
| Spindle power | 0.5 kW |
| Spindle speed | 40,000 rpm |
| Machine size | 650x550x500mm |
| Weight | 75KG |
Desktop PCB Depaneling Router Machine Maintenance:
1. It is necessary to check whether there are materials falling from the electric cabinet. If so, it needs to be cleaned in time and maintained daily. About the maintenance method of the front and rear panels of the host: the front and rear panels of the host need to be wiped every day.
2. About the maintenance method of the iron plate at the bottom of the main engine: if the parts fall, they need to be removed and replaced in time.
3. About the maintenance method of the three-point combination: check whether there is water in the water filter cup every day. If there is water, press the Yellow drain to remove it.
4. Maintenance method of spindle: wipe and clean the spindle when the machine stops working every day.
5. Maintenance method of vacuum cleaner: wipe and clean the vacuum cleaner after the machine stops working every day.
