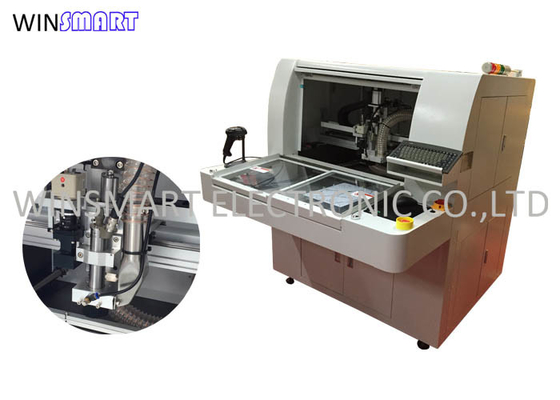

Semi-auto Top Cutting CNC PCB Router Machine Max 100mm/s Cutting Speed


CNC PCB Router Machine Functions:
PCB depaneling router machine is a machine used to separate irregular PCB boards connected by stamp holes. Also known as PCB curve cutting machine, desktop PCB router machine, stamp hole PCB separator machine. PCB depaneling router machine is an important process in the PCB manufacturing process. PCB router refers to cutting the graphics required by the customer through the bit according to the processing program designed by the project. When the milling cutter is worn to a certain extent, it will break the knife and lead to leakage. If the production board with good bit is not delivered to the customer according to the customer's requirements, PCBA (printed circuit board + assembly refers to the whole process of PCB empty board passing through SMT and then dip plug-in) cannot be successfully installed on the product, resulting in PCBA scrapping.
If the thickness of the PCB board is equal to or greater than the length of the tool, the rotation of the fixed structure above the tool will burn the PCB board during rough routing. In order to avoid the damage of burning the PCB board caused by the rotation of the fixed structure above the tool, the fixed structure needs to form a gap with the PCB board.


CNC PCB Router Machine Advantages:
1. Two-slide tables
2. Low stress
3. Smooth cutting edge
4. Manul loading /unloading
5. CCD system for precise cutting
6. Adjustable 1-100mm/s cutting speed

CNC PCB Router Machine Features:
1. Table type single bench cutting machine, with speed up to 100mm / s and positioning speed of 500mm / s.
2. Continuous cutting without interruption during loading and unloading.
3. The high-quality rotating shaft system enables the system to accelerate and decelerate quickly, reduce the synchronization time, improve productivity and maintain high precision.
4. Use high-quality hardware to ensure high rigidity and high performance.
5. All guide screws are covered to prevent dust and dirt from entering, so as to improve the service life and performance of the rotating shaft.

CNC PCB Router Machine Specifications:

Overall
Dimensions(W*D*H)1250mm*1650mm*1450mm
Weight750KG
Height offset60~110mm
Manipulator
Motor typeJiaBao series
Positioning repeatability0.001mm
Axis working area(max)650mm*560mm*50mm
Work station
PCB fixationstandard,specialization
PCB loading/unloadingmanual
PCB size (max)320*320mm
PCB thick (max)5mm
Fixturing
Rigidity fixturingCustomized make fixture
Fixturing fixationmachinery
Spindle Motor
Power150W
Spindle60000rpm/min
Protectself/wind cooling
Change cutterSpecialization
Routing capability
Cutting speed(max.)100mm/s
Driving speed(max.)2500mm/s
Precision of cutting0.01mm
Vacuum System
Vacuum power3.5KW AC 380V
Vacuumplumb
Utilities
Power2.0KW AC380V
Air supply4-6KG/cm2
Programming
Program editInline
Function editLine,arc,circula,U-curve
Program storageHDD
Vision systemSONE colour CCD
milling cutter offsetAUTO
Vacuum setupAUTO
Operation Monitors
IindicatorIindicator Machine state
tool checkAutomatic detection tool life, the use of time testing
Motor protectHave overheating, overload, low voltage protection function
motor over loading checkHave Overload, the line is normal, low voltage protection function
Tool usable timeAutomatic detection tool life,
Data statisticSeparate board model, separating count, diverse counting methods
Error recordSoftware automatically records all alarms memory of machines
III. Accuracy
Axis precision0.001mm
Cutting precision0.1mm
IV. Safety
Working area protectWith four sealed protection
Door sensorFront and rear safety door micro-switch sensor (optional)
Exigency stop button


CNC PCB Router Machine Parameters:
1. Machine dimension:1250mm*1650mm*1450mm
2. PCB size: 320x320mm (standard)
3. Working mode: top cutting
4. Vacuum cleaning system: top or bottom cleaning
5. Vacuum cleaner voltage: 3 Phase 380V 3.5KW
6. Cutting precision: +-0.05mm
7. Cutting speed: 100mm/s
8. PCB material: FR4, MCPCB
