Product Details:
|
Application: | Flex Circuit To PCB Soldering | Type: | Pulse Heat Bonding |
---|---|---|---|
Voltage: | 220V/110V | Temperature Accuracy: | ±2°C |
Thermode Cooling: | Air | Name: | Hot Bar Soldering Flex Circuits |
High Light: | Molybdenum Alloy Hot Bar Soldering Machine,80mm Thermode Hot Bar Soldering Machine,Flex Circuits Hot Bar Soldering Equipment |

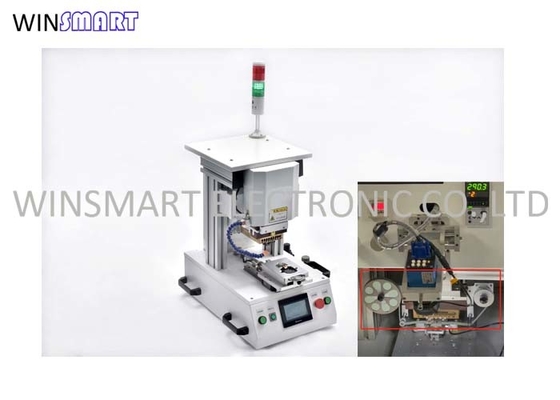

Hot Bar Soldering Flex Circuits with 80mm Thermode Made of Molybdenum alloy
Hot Bar Soldering Flex Circuits Overview:
This hot bar soldering machines, easy to use, robust and economical for bonding flex to rigid assemnlies such as flex to PCB, LCD-Flex to PCB, Flex to LCD, HSC to LCD, HSC to PCB, Wires to PCB, etc.
Hot Bar Soldering Flex Circuits Advtanges:
1. Uniform welding
2. No false welding, false welding and missing welding
3. Improve soldering quality
Hot Bar Soldering Flex Circuits Features:
1. The hot bar soldering machine is used on the internal parts of mobile phones. Everyone is familiar with touch screen smart phones. Mobile phones are now basically necessary for people, and some people even have more than one mobile phone. You may not know that the mobile phone you use every day will also use the hot bar soldering. Because the hot bar soldering machine sounds like a big machine, you feel that the operation goal is also some huge parts. However, small mobile phones often use the pulse heat bonding. The pulse heat welding machine is usually used for the function module of the mobile phone screen or when the camera FPC is welded to the PCB.
2. The hot bar soldering machine can be used at the back of the touch screen. Nowadays, there are many products of touch screen, such as touch-screen mobile phones, touch-screen computers, and some bonding technologies of resistive touch screen and capacitive touch screen, which are usually widely used in hot bar soldering.
3. Pulse heat soldering machine is used for all kinds of electronic goods. From the above two uses, we can also make a brief summary. Hot bar soldering machine is usually used for products. With the development of various electronic products, we can further infer that the use of pulse hot press will be more and more widely. Therefore, if you want to purchase the pulse heat soldering machine, you should know how to distinguish the quality and technical function in order not to be dizzy in the PCB market. Today's pulse hot press equipment, vacuum bonding machine equipment and so on have no great difference in shape and technology. They are all very different, but they do not necessarily achieve the same level of function, and the corresponding equipment quality is simple and uneven.
Hot Bar Soldering Flex Circuits Specification:
Model | SMTS01 |
Warranty | 1 year |
CE Approval | Yes |
Tooling | Customized fixture |
Machine size | 500×500×600mm |
Working area | Max 200*170mm |
Machine weight | 62Kg |
Working air pressure | 0.6-0.8Mpa |
Fixture quantity | 1 |
Thermode head size | Max 40*3mm |
Welding precision | pitch 0.2mm |
Pressing time | 1~99.9s |
Temperature settings | RT~500℃ tolerance ±5℃ |
Welding pressure | 1~20Kg |
Temperature settings | Two |
Working environment | 10-60℃,40%-95% |
Power supply | AC220V±10% 50HZ,2200W |
Alignment mode | CCD + LCD Monitor |
Feeding mode | Manual |
Starting mode | Press start button |
Rotation Platform | Cylinder control,tolerance<0.02mm |
