Product Details:
|
| PCB Type: | Tab PCB | PCB Material: | FR4, Aluminum |
|---|---|---|---|
| PCB Thickness: | 0.8-3.0mm | Inspection Video: | Provided |
| Fixture: | Customized Made | Certificate: | CE |
| Working Area: | 350x400mm | Product Name: | CNC PCB Router Machine |
| High Light: | Wind Cooling PCB Router Machine,Self Cooling PCB Router Machine,Top Cutting Pcb Cnc Router |
||

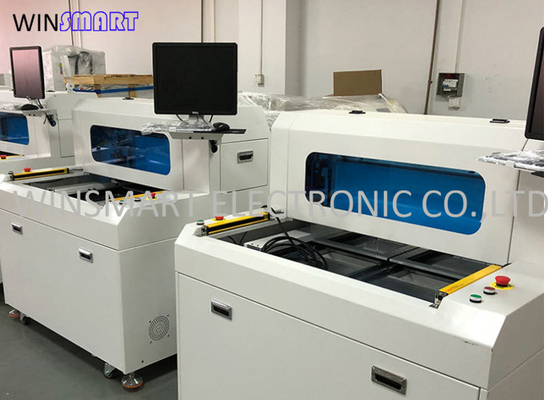

12 Months Warranty Low Cost CNC PCB Router Machine From Top Cutting
CNC PCB Router Machine Function:
This PCB router machine is used to separate milling joints connection tab printed circuit boards, with less cutting stress to make sure that the cutting edge is smooth.
CNC PCB Router Machine Features:
1. This CNC PCB router has two-slide tables to do continuous cutting.
2. Lower stress to ensure smooth cutting edge.
3. Imported motor and spindle is used for noise free purpose.
4. Optional top and bottom vacuum cleaning sytem is available.
5. High quality CCD system to ensure precise cutting.
6. Easy and simple programming, routing bits and cutting speed is adjustable.
CNC PCB Router Machine Specifications:
| Overall | |
| Dimensions(W*D*H) | 1150mm*1250mm*1325mm |
| Weight | 750KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 870mm*450mm*50mm |
| Work station | |
| PCB fixation | standard,specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 350*400mm |
| PCB thick (max) | 5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 40W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 100mm/s |
| Driving speed(max.) | 3000mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button |
CNC PCB Router Machine Vacuum Cleaner Parameters:
| Strainer | Vertical box |
| Dust box dimensions | 730mm×640mm×1700mm |
| Voltage power | AC380V 50HZ,2.2KW,3HP |
| Noise | Below 75db |
| Airinlet/outlet dimensions | 6 inches/8 inches |
| Power cord | 5X2.52 |
| High density filter bag |
16PCS |
