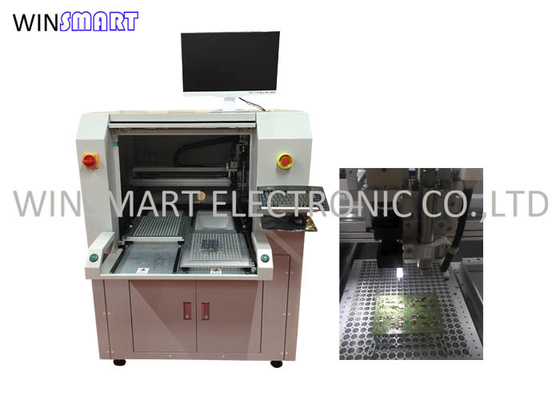

Top Cutting PCB Router Machine Dual Table For Standard 350x350mm PCB Boards

Brand Name:	Winsmart
Model Number:	SMTR05
MOQ:	1 Set
Price:	USD20000-80000
Packaging Details:	Plywood case
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Working Mode:

Offline

Spindle Speed:

60000rpm

Cutting Precision:

±0.05mm

Feature:

Top Cutting

Cutting Speed:

1-100mm/s

Cleaner:

380V, 3HP

Vacuum Cleaner:

Optional Top And Bottom

Product Name:

PCB Router Machine

Supply Ability:

100 Sets/Month

Highlight:

Top Cutting PCB Router Machine

Dual Table PCB Router Machine

350x350mm PCB Boards Router Machine

Product Description

Top Cutting PCB Router Machine Dual Table For Standard 350x350mm PCB Boards

PCB Router Machine Description:

1. PCB router machine is a machine for depaneling irregular PCB boards connected by milling bridge.

2. It is also named PCB router, desktop PCB router machine, stamp hole PCB depaneling router, etc.

3. PCB router machine is an important process in the PCB manufacturing process.

4. PCB router machine refers to cutting the graphics required by the customer through the routing bits according to the programs.

PCB Router Machine Features:

1. Dual tables, milling cutter keep working all the time, suitable for high volume production, wihout interruption by loading and unloading.

2. SycoTec spindle is used for precise depaneling, to improve productivity and ensure smooth cutting edge.

3. Optional top and bottom cleaning system is available, ensure dust free and noise free.

4. High quality hardware, ensure high rigidity and good performance.

5. Fast cutting speed, max 0.5 second per cutting point.

PCB Router Machine Specifications:

Router Machine	SMTR05
X/Y Cutting Speed	0 ~100mm/s
Repeatability precision	± 0.01mm
X/Y1/Y2/Z control mode	Industrial IPC and PC
X/Y1/Y2/Z driven mode	AC Servo Motor
Operation and data storage	PC
Operation system	Win 10
Language	English
Cutting Precision	± 0.05mm
Camera	Germany brand
Positioning	Fixture
Spindle Speed	60000rpm(Germany KKAVO)
Automtic positioning	Yes
Power Supply	220V/110V
Air Pressure	4.5kg/cm 2
Power Rate	1.8KW
Vacuum Cleaner
Mode	Top or Bottom
Power Supply	380V
Top Cleaner Dimension	L650W400H1350mm
Bottom Cleaner Dimension	L665W635H1650mm
