|PCB Type:||V-cut And Tab Rigid PCB||Dust Collection:||Top|
|Spindle Quantity:||2||Cutting Speed:||0-100mm/s|
|Mode:||Inline||Name:||Inline V-cut PCB Depaneling Machine|
Inline V Cut PCB Depaneling Machine,
100mm/s V Cut PCB Depaneling Machine,
Rotatable Working Table PCB Router

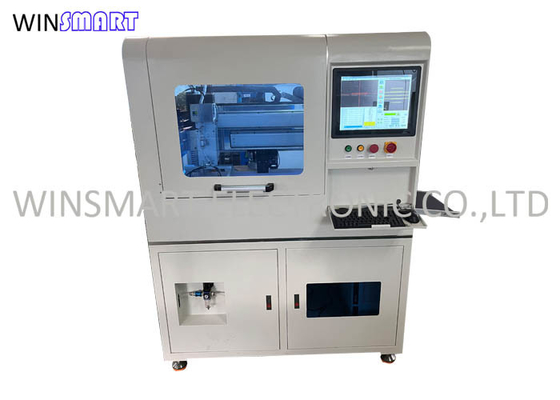

Rotable Working Table Inline V-cut PCB Depaneling Machine PCB Router
Inline V-cut PCB Depaneling Machine Feeding Mode:
1. Anti-static driven mode, SMEMA interface which is able to connect front SMT equipment.

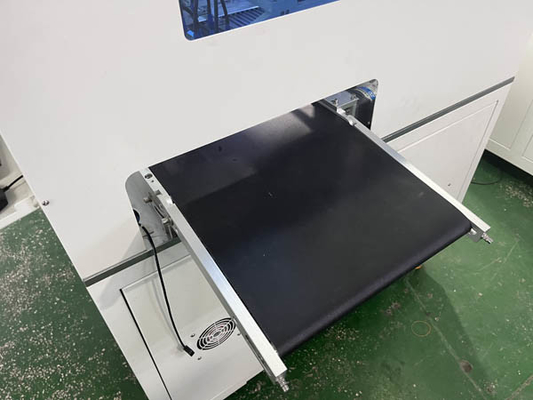

2. Adjustable conveyor for different width PCBA, range is 50-350mm.
Inline V-cut PCB Depaneling Machine Features:
※ Realize unmanned production, which is suitable for all kinds of rigid PCBA depaneling, covering V-cut and tab boards.
※ PC and CCD vision system.
※ Programming with compensation and dust collection.
※ 2 spindles installed, one for V-cut depaneling, the other is for milling bridge depaneling.
※ Less than 500ustrain cutting stress to protect components from damage during cutting.
※ Optional QR code and barcode tracking system.
※ Friendly software, easy to operate and program
Inline V-cut PCB Depaneling Machine Cutting Structure:
1. The servo motor is matched with a precise screw driven to ensure cutting speed and precision.
2. The saw blade cutter is driven by a high speed brushless motor, which lower cutting stress effectively.
3. Two spindle works separately, suitable for all FR4 and Aluminum PCBA depaneling.
Inline V-cut PCB Depaneling Machine Mechanical Collection:
1. The X axis is driven by belt and stepper motor, which has fast response speed, high precision and low maintenance cost.
2. Adopts independent operation mode of double manipulators, which is efficient and flexible. Fast production changing time for SMT line.
3. Equipped with multifunctional vacuum nozzle, convenient and improve production time.
Inline V-cut PCB Depaneling Machine Specification:
|Machine Size||1800(L) x 1500(W) x 2200(H)mm|
|Max PCB Size||300x300mm (customizable)|
|PCB Positioning||Customized fixture|
|Programming||Vision teaching, inline programming|
|Cooling Type||Self cooling|
|Dust Collection Mode||Top collection|
|Routing Bit||0.8-3.0 Diameter, right rotation|
|Control System||Industrial PC|
|Spindle||Germany SycoTec 4025HY|
