Product Details:
|
| PCB Type: | Tab Boards | PCB Material: | FR4, Aluminum |
|---|---|---|---|
| PCB Thickness: | 0.8-3.0mm | Certificate: | CE Approval |
| Cutting Precision: | ±0.05mm | Testing Report: | Provided |
| Working Area: | Dual, 320x320mm | Cutting Speed: | 1-100mm/s |
| Warranty: | 12 Months | Product Name: | PCB CNC Router Machine |
| High Light: | 60000rpm Spindle PCB CNC Router Machine,0.05mm Cutting Precision PCB CNC Router,3.0mm PCB Depaneling Router Machine |
||

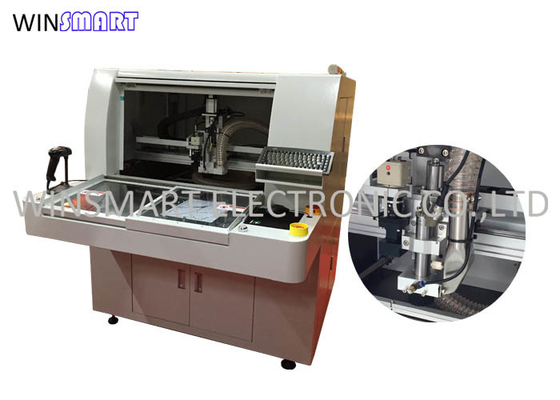

0.05mm Cutting Precision 60000rpm Spindle PCB CNC Router Machine
PCB CNC Router Machine Application:
It is widely used in electronic industries manufacturing, such as mobile phone, automotive electronics, household electric appliances, mobile phone, LED lighting, medical industry, etc.
PCB CNC Router Machine Function:
1. This PCB router machine uses a router bit to mill FR4 and Aluminum PCB boards.
2. Routing requires that single boards are connected by milling joints.
3. The milling cutter mills the whole board from larger panel.
4. It comes with top/bottom vacuum cleaning system.
5. Customized fixture is made according to different applications - usually an aluminium jig or a vacuum holding system is used.
PCB CNC Router Machine Features:
1. The PCB router machine has two-slide working tables for high volume production.
2. It has lower stress to protect PCBA to ensure smooth cutting edge.
3. Imported motor and spindle is used for noise free and precise cutting.
4. Optional top and bottom vacuum cleaning sytem is available for different clients' requirements.
5. High quality CCD system to ensure precise cutting, with automatic positioning function.
PCB CNC Router Machine Specifications:
| Overall | |
| Dimensions(W*D*H) | 1250mm*1650mm*1450mm |
| Weight | 750KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 650mm*560mm*50mm |
| Work station | |
| PCB fixation | standard,specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 320*320mm |
| PCB thick (max) | 5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 150W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 80mm/s |
| Driving speed(max.) | 2500mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button |
