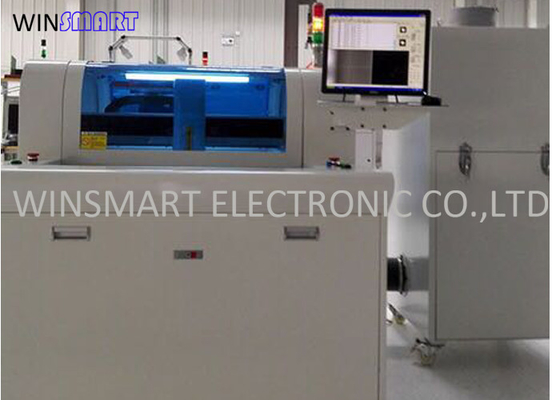

60000RPM Customized PCB Depaneling Router Machine CNC PCB Separator

60000RPM Customized PCB Depaneling Router Machine CNC PCB Separator
60000RPM Customized PCB Depaneling Router Machine CNC PCB Separator

Large Image :  60000RPM Customized PCB Depaneling Router Machine CNC PCB Separator

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTR07
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

60000RPM Customized PCB Depaneling Router Machine CNC PCB Separator

Color: White PCB Thickness: 0.8-3.0mm
PCB Type: Milling Bridge Cutting Precision: ±0.05mm
PCB Size: Customized Vacuum Cleaner: 3HP/2.2KW
Routing Bit: Dia 0.8-2.5mm Certificate: CE
On-site Installation: Yes Product Name: Customized PCB Depaneling Router
High Light:

Pcb Depaneling Router Machine 60000RPM


Milling Bridge PCB Depaneling Router


CE Certificate CNC PCB Separator

60000RPM Customized PCB Depaneling Router Machine CNC PCB Separator



Customized PCB Depaneling Router Instroduction:

This PCB depaneling router is a conditional type of PCB separator with the characteristics of compact structure and strong rigidity; And the operation of PCB depaneling router is simple, safe and easy to change the die. But we should pay attention to the cutting position when using it.


Customized PCB Depaneling Router Features:

1. 1.X10 zoom-in image makes programming easier&increase the accuracy of point setting.

2. Dual working table to keep routing bits working all the time, suitable for high volume production.

3. Optional top and bottom vacuum cleaning system.

4. Customized fixture ensure better cutting effection.

5. Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first milling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.



Customized PCB Depaneling Router Specification:

I. Hardware
SPINDLE China brand spindle (optional)
CCD Sony 520 line industrial cameras
LENS Computar EX2C
Screw TBI Precision ground ball screw imports
Guide HIWIN widening Imported linear guide rail
MOTOR JiaBao LCF Series
I/O CARD PCI-9074-64pcs/-38pcs
Static cleanup STATIC-ST401A Series
Computer (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface AOC LCD17",Logitech mouse
2. software
Control system Windows XP Professional (Service3,v.3244)
Operation GUI English Windows XP
Program edit Inline
Vision system CCD AOTU offset
Control system F 1.2.100 version


Customized PCB Depaneling Router Parameters:

Dimensions(W*D*H) 1220mm*1380mm*1240mm
Weight 450KG
Height offset 60~110mm
Motor type JiaBao series
Positioning repeatability 0.001mm
Axis working area(max) 650mm*560mm*50mm
Work station
PCB fixation standard, specialization
PCB loading/unloading manual
PCB size (max) 280*320mm
PCB thick (max) 3.5mm
Rigidity fixturing Customized fixture
Fixturing fixation machinery
Spindle Motor
Power 150W
Spindle 60000rpm/min
Protect self/wind cooling
Change cutter Specialization
Routing capability
Cutting speed(max.) 80mm/s
Driving speed(max.) 2500mm/s
Precision of cutting 0.01mm
Vacuum System
Vacuum power 3.5KW AC 380V
Vacuum plumb
Power 2.0KW AC380V
Air supply 4-6KG/cm2
Program edit Inline
Function edit Line,arc,circula,U-curve
Program storage HDD
Vision system SONE colour CCD
milling cutter offset AUTO
Vacuum setup AUTO
Operation Monitors
Iindicator Iindicator Machine state
tool check Automatic detection tool life, the use of time testing
Motor protect Have overheating, overload, low voltage protection function
motor over loading check Have Overload, the line is normal, low voltage protection function
Tool usable time Automatic detection tool life,
Data statistic Separate board model, separating count, diverse counting methods
Error record Software automatically records all alarms memory of machines
III. Accuracy
Axis precision 0.001mm
Cutting precision 0.1mm
IV. Safety
Working area protect With four sealed protection
Door sensor Front and rear safety door micro-switch sensor (optional)
Exigency stop button



Customized PCB Depaneling Router Advantages:
1. Daily production of the PCB depaneling router is high, saving manufacturing cost.
2. Improve the quality of production and service.
3. The PCB depaneling router u
ses a dust-free cutting technology to ensure that the separated board is very clean and does not need any other tools to clean the dust after cutting.
4. Low employment cost.

PCB Depaneling Router Machine FAQ:

1.A: What is life time of routing bit?

   Q:150-300 meters.

2.A: Can this model cut Aluminum PCB boards?

   Q: Yes, it can.

3.A: What about PCB positioning?

   Q: Use customized jig for positioning.

4.A:What is the spindle for the PCB depaneling router?

   Q:Germany SycoTec 4025 or China brand.
