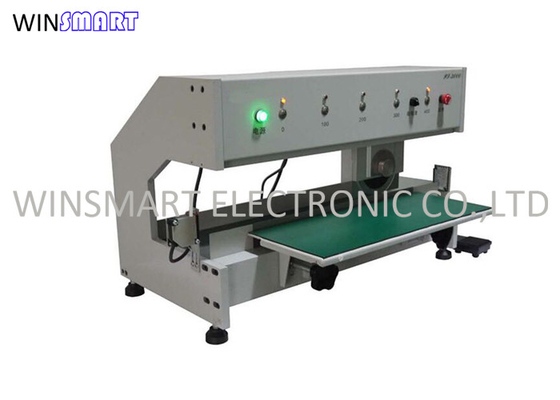

Automatic 4 Speed Rates Aluminum PCB Depaneling Machine For V Cut Boards

Automatic 4 Speed Rates Aluminum PCB Depaneling Machine for V-cut Boards

Aluminum PCB Depaneling Machine Description:

1. This PCB depaneling machine adopts a new type of linear/circular cutter design, and completes the micro shear stress cutting stroke at one time. The cutter is suitable for cutting PCB with V-groove. The board does not move, and the cutting blade moves forward and backward. The shear stress is reduced and the potential quality risk of the product is reduced. The cutting machine is made of high speed steel and can be used repeatedly. Now let's talk about the stress effect of PCB cutter.

2. From the point of view of physics, we can understand that when the material can not produce displacement under the action of external force, its geometry and size will change. This deformation is called strain.

3. When the material is deformed, there will be equal but opposite reaction force inside to resist the external force. The concentration of distributed internal force at a certain point is called stress. In short, the internal force per unit area of a point in the cross section under study is called stress, the normal of the cross section is called normal stress or normal stress, and the tangent of the cross section is called shear stress. Or shear stress.

4. First of all, like some moveable knife PCB cutters, the PCB does not move in the cutting process, and the round knife moves. This ensures that the electronic components of the substrate will not be damaged due to movement, and is also a factor affecting the stress of the separator. In addition, it can adjust the sliding speed of the round cutter, the depth of the V-groove, the loss of the cutter, and the precise adjustment of the interval between the upper round cutter and the lower straight cutter.

Aluminum PCB Depaneling Machine Features:

1. Separate pre-scored PCB assembly without stress on either PCB or component

2. One touch programming of cut length with digital display

3. Separating speed is adjusted by a rotary knob

4. Handle Intermittent scoring or cut-outs

5. Board with projected component can be cut precisely

6. Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable

7. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out

8. Blades could be re-sharpened

9. Blades could be customized as customers’ request

Aluminum PCB Depaneling Machine Specifications:

Aluminum PCB Depaneling Machine Characteristics:

1.Easy maintanance and operation
2.Low bending stress,no vibration
3.specially for resin substrate PCB with pre-scored V groove

4.safety use
