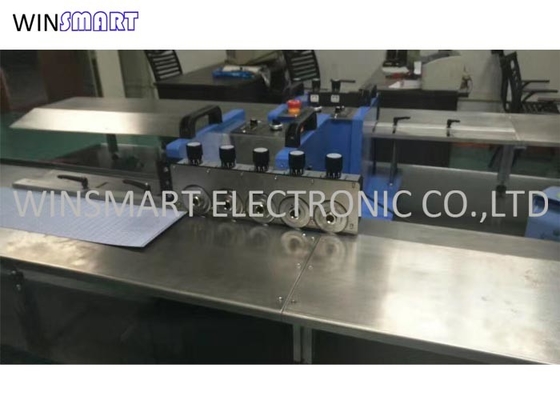

1500mm 5 Blade PCB Depanelizer Machine LED Strip PCB Cutting Machine

1500mm 5 Blade PCB Depanelizer Machine LED Strip PCB Cutting Machine
1500mm 5 Blade PCB Depanelizer Machine LED Strip PCB Cutting Machine

Large Image :  1500mm 5 Blade PCB Depanelizer Machine LED Strip PCB Cutting Machine

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTD3L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plywood case
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

1500mm 5 Blade PCB Depanelizer Machine LED Strip PCB Cutting Machine

Description
Condition: New PCB Material: FR1, FR4, CEM1, CEM3, MCPCB
PCB Thickness: 0.6-3.5mm Max Cutting Length: No Limit
Origin: China Name: LED Strip PCB Cutting Machine
Highlight:

1500mm LED Strip PCB Cutting Machine

,

5 Blade PCB Depanelizer Machine

,

CE Approved PCB Cutting Machine

1500mm LED Strip PCB Cutting Machine 5-blade PCB Depanelizer Machine





LED Strip PCB Cutting Machine Introduction:

This machine is available for both FR4 and Aluminum printed circuit board depaneling.

It is designed to minimize board stress and avoid component damage.

Five pairs of precision beveled cutting blades ensure the board does not bend or deform.

The guide can be adjusted vertically to suit different LED boards.

Depth between upper circular blades can be precisely adjusted to reduce stress on score line edge and blade wear.



LED Strip PCB Cutting Machine Features:

1. Separates panels up to 0.1"

2. Cutting capacity is no limited.

3. Minimum board thickness of 0.024"

4. Shears boards safely with parts as close as 0.02" to score line.

5. Only allow correct boards placement to avoid mistakes.

6. 5-blade sets share cutting stress for smooth cutting edge.

7. Blades can be re-sharpened 2-3 times.

8. Very strong machine frame for higher quality cutting effect.



LED Strip PCB Cutting Machine Specification:

Model SMTD3L
Machine Dimension 400x400x330mm
Platform Dimension 2400x300x200mm
Max Cutting Length No limit
PCB Material FR4, MCPCB, Copper Boards
Cutting Speed 0-500mm/s
PCB Thickness 0.6-3mm
Power 220/110V
Machine Weight 50kgs
Wooden Case Dimension 116x67x58cm
Gross Weight 85kgs




LED Strip PCB Cutting Machine Applications:

It is professional for FR4 and aluminum LED boards depaneling to improve production efficiency to save manufacturing cost for LED industrial customers.
