Product Details:
|
| PCB Type: | V-score | PCB Thickness: | 0.4-5mm |
|---|---|---|---|
| Inspection Video: | Provided | PCB Material: | FR1, FR4, MCPCB, CEM1, CEM3 |
| Warranty: | 12 Months | Type: | PCB Board Cutting Machine |
| High Light: | Pneumatic PCB Board Cutting Machine,Footpedal PCB Board Cutting Machine,V Scoring PCB Separator Machine |
||

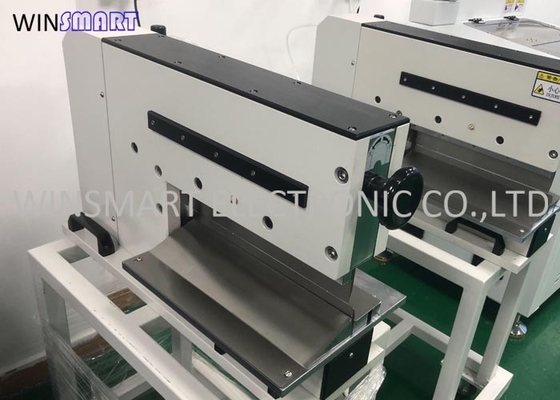

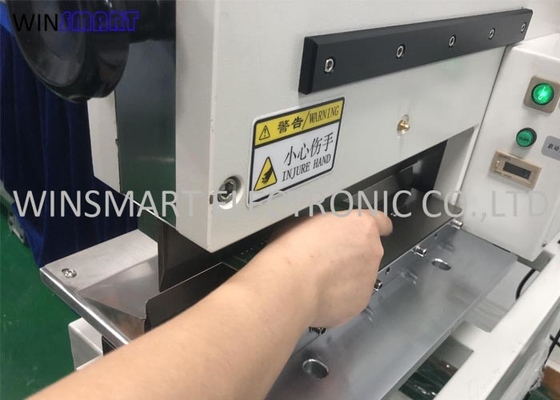

Pneumatic Footpedal Operated V-scoring PCB Board Cutting Machine
PCB Board Cutting Machine Features:
1. Using the latest pneumatic/ electric lightweight design, especially suitable for cutting precision SMD sheet.
2. Penumatic system, not easy to damage the product and come with operation safety, anti-stay function.
3. The bladel is made of imported high-speed steel, which can be used repeatedly.
4. It is suitable for PCB / aluminum boards of various thickness.
5. Shearing undercutting type to minimize the internal stress generated when cutting the board and avoid tin cracks.
6. The max distance between the upper and lower blade is 2mm for safety operation.
PCB Board Cutting Machine Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm |
| Max Cutting Length | 330mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Condition | New |
| Blade Material | High speed steel |
| Customized Blade | Available |
| Blade Re-sharpen | Yes |
| Power | 110/220V |
| Machine Weight | 130kgs |
PCB Board Cutting Machine Classification:
In order to improve cutting effect from hand breaking, many manufacturer could choose below PCB separators according to their applications:
1. V-cut PCB separator machines for the v-cut panels
2. PCB punching machine for FPC and tab PCB panels
3. PCB router for FR4 tab panels
4. Laser depaneling for all FPC and FR4 panels
Please feel free to contact us for a solution recommendation for your applications.
