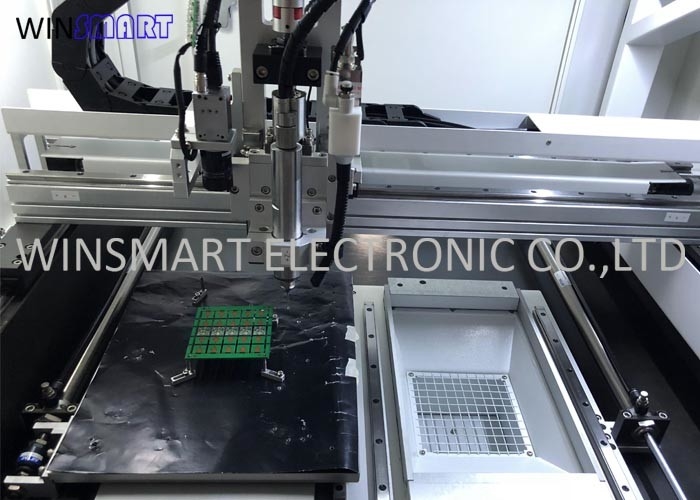

PC Controlled PCB Depaneling Machine 0.8-3.0mm Thickness For Tab Boards

PC Controlled PCB Depaneling Machine 0.8-3.0mm Thickness For Tab Boards
PC Controlled PCB Depaneling Machine 0.8-3.0mm Thickness For Tab Boards
PC Controlled PCB Depaneling Machine 0.8-3.0mm Thickness For Tab Boards PC Controlled PCB Depaneling Machine 0.8-3.0mm Thickness For Tab Boards

Large Image :  PC Controlled PCB Depaneling Machine 0.8-3.0mm Thickness For Tab Boards

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTR07
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1-100000
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

PC Controlled PCB Depaneling Machine 0.8-3.0mm Thickness For Tab Boards

Description
PCB: Tab Boards PCB Material: FR4, Aluminum
PCB Thickness: 0.8-3.0mm Inspection Video: Provided
Cutting Precision: ±0.05mm CE: Yes
Working Area: 350x400mm Cutting Speed: 1-100mm/s
Vacuum Cleaner: Bottom Or Top Product Name: PC Controlled PCB Depaneling Machine
Highlight:

0.8mm PCB Depaneling Machine

,

PC Controlled PCB Depaneling Machine

,

Tab PCB Depaneling Router Machine

PC Controlled PCB Depaneling Machine, PCB Sigulation For Tab PCB Boards


PC Controlled PCB Depaneling Machine Introduction:
PCB depaneling router machine is a machine used to separate irregular PCB boards connected by stamp holes. Also known as PCB curve cutting machine, stamp hole PCB separator machine, PCB router, PCB depaneling router machine. It is an important process in the PCB manufacturing process.  And it refers to cutting the graphics required by the customer through the bit according to the processing program designed by the project. When the milling cutter is worn to a certain extent, it will break the knife and lead to leakage. If the production board with good bit is not delivered to the customer according to the customer's requirements, PCBA (printed circuit board + assembly refers to the whole process of PCB empty board passing through SMT and then dip plug-in) cannot be successfully installed on the product, resulting in PCBA scrapping.
PC Controlled PCB Depaneling Machine Advantanges:
1. Dual table, routing bits are working all the time, improving productivity.
2. Continuous cutting without interruption during loading and unloading.
3. The high-quality rotating shaft system enables the system to accelerate and decelerate quickly, reduce the synchronization time, improve productivity and maintain high precision.
4. Use high-quality hardware to ensure high rigidity and high performance.
5. All guide screws are covered to prevent dust and dirt from entering, so as to improve the service life and performance of the rotating shaft.
PC Controlled PCB Depaneling Machine Features:
1. Two-slide tables for high volume production. And it has lower stress to protect PCBA to ensure smooth cutting edge.
2. Imported motor and spindle is used for noise free purpose.
3. Optional top and bottom vacuum cleaning sytem is available for different clients' requirements.
4. High quality CCD system to ensure precise cutting.
5. Easy and simple programming, routing bits and cutting speed is adjustable.


PCBA Milling Cutter PCB Router Machine Specifications:

Overall
Dimensions(W*D*H)1150mm*1250mm*1325mm
Weight750KG
Height offset60~110mm
Manipulator
Motor typeJiaBao series
Positioning repeatability0.001mm
Axis working area(max)870mm*450mm*50mm
Work station
PCB fixationstandard,specialization
PCB loading/unloadingmanual
PCB size (max)350*400mm
PCB thick (max)5mm
Fixturing
Rigidity fixturingCustomized make fixture
Fixturing fixationmachinery
Spindle Motor
Power40W
Spindle60000rpm/min
Protectself/wind cooling
Change cutterSpecialization
Routing capability
Cutting speed(max.)100mm/s
Driving speed(max.)3000mm/s
Precision of cutting0.01mm
Vacuum System
Vacuum power3.5KW AC 380V
Vacuumplumb
Utilities
Power2.0KW AC380V
Air supply4-6KG/cm2
Programming
Program editInline
Function editLine,arc,circula,U-curve
Program storageHDD
Vision systemSONE colour CCD
milling cutter offsetAUTO
Vacuum setupAUTO
Operation Monitors
IindicatorIindicator Machine state
tool checkAutomatic detection tool life, the use of time testing
Motor protectHave overheating, overload, low voltage protection function
motor over loading checkHave Overload, the line is normal, low voltage protection function
Tool usable timeAutomatic detection tool life,
Data statisticSeparate board model, separating count, diverse counting methods
Error recordSoftware automatically records all alarms memory of machines
III. Accuracy
Axis precision0.001mm
Cutting precision0.1mm
IV. Safety
Working area protectWith four sealed protection
Door sensorFront and rear safety door micro-switch sensor (optional)
Exigency stop button
Vacuum Cleaner
StrainerVertical box
Dust box dimensions730mm×640mm×1700mm
Voltage power AC380V 50HZ,2.2KW,3HP
NoiseBelow 75db
Airinlet/outlet dimensions 6 inches/8 inches
Power cord5X2.52
High density filter bag16PCS
