Product Details:
|
| After-sale Service: | Operation Video And Online Support | Laser: | UV |
|---|---|---|---|
| Working Area: | 300x300mm | Fixture: | Customized |
| Testing Report: | Provided | Name: | Laser Depanling |
| High Light: | High Productivity PCB Laser Depaneling Machine,Dual Table PCB Laser Depaneling Machine,300x300mm Laser PCB Depaneling Machine |
||

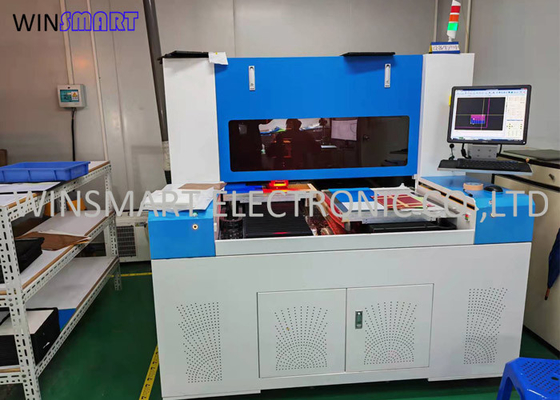

Dual Table High Productivity PCB Laser Depaneling PCB Depanelizer Machine
Laser Depaneling Purpose:
The processing and application objects are PCB, FPC soft and hard plate and related material cutting, cover opening and other operations.
Efficient integration of all components of the equipment, including laser, optical path, galvanometer system, 4-axis motion platform and image
System to achieve efficient and accurate operation.
Laser Depaneling Specifications:
| Power | 380V AC, 50Hz, 20A |
| Compressed Air | Compressed air |
| Machine Dimension | 1450(L)x1350(W)x1665(H)mm |
| Installation Space | 3000x3000x2500mm |
| Machine Weight | 2000kgs |
| Ambient Temperature | 22 ~ 25 ℃ |
| temperature variation | within ± 1 ℃ / 24hr |
| ambient humidity | within 40% ~ 70% (no obvious condensation is allowed) |
| Dust free grade | 100000 or better |
| power consumption | 6KW |
| Cutting width | ≤ 50mm × 50mm |
| Cutting materials | full cut / half cut of PCB / FPC, LCP / glue and other related materials |
| Cutting thickness | ≤ 3mm |
| Cutting speed | ≤ 3000mm / S |
| Overall machining accuracy | ≤ 30um |
| Processing pattern | straight line, slash, curve, abnormity, etc |
Laser Depaneling Laser Source:
| Laser | 355nm light wave nanosecond laser |
| Repetition frequency | 50-150khz |
| Laser Powe | UV 15W@30KHz |
| Pulse width | < 20ns |
| Energy stability | < 3% RMS over 8hours |
| Beam quality m ² | < 1.3 |
| Mode | 2500mm/S |
Laser Depaneling Features:
Effectively control the processing heat effect, and improve the edge collapse and thermal effect of the product. High quality laser, no contact processing, no burr and burr after cutting. Mature process system can accurately calculate and segment the graphics, and realize the process of processing parameters and processing graphics. No stress, ±5μm cutting precision. Import gerber file for easy operation. Alien/line cutting is available. Non-contact, smooth cutting edge.
Laser Depaneling Laser Photos:
Laser Depaneling Applications and Cutting Effect:
Application fields: pcb/fpc/pi/cpi/mpi/pcba/cof/cop/cob/fr4/lcp, etc. No dust, good to PCB conductivity.
