Single Table PCB CNC Router Machine With Customizable Table

Single Table PCB CNC Router Machine With Customizable Table
Single Table PCB CNC Router Machine With Customizable Table

Large Image :  Single Table PCB CNC Router Machine With Customizable Table

Product Details:
Place of Origin: China
Brand Name: Winsmart
Certification: CE
Model Number: SMTRS12
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1-100000
Packaging Details: Plywood case
Delivery Time: 5-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets/Month

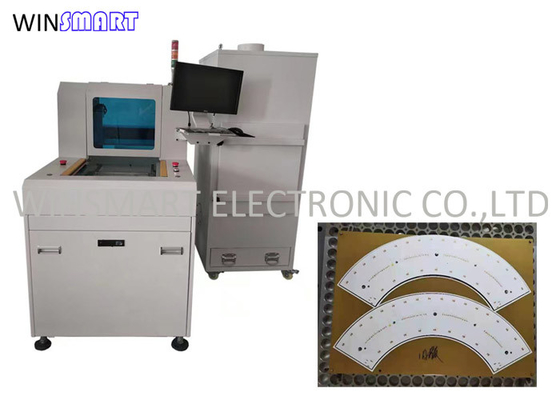

Single Table PCB CNC Router Machine With Customizable Table

Description
Spindle: Taiwan PCB Thickness: 0.8-3.0mm
Advantage: Small And Economic Cutting Precision: ±0.05mm
Max PCB Size: 300x300mm Vacuum Cleaner: 3HP/2.2KW
Cutting Speed: 1-100mm/s Product Name: PCB CNC Router
High Light:

Single Table PCB CNC Router Machine

,

Customizable Table PCB CNC Router Machine

,

3HP PCB Depaneling Router Machine

Low Price Single Table PCB CNC Router Machine with Customizable Table




PCB CNC Router Machine Features:

1. The cursor pick-up programming method greatly improves the programming efficiency and reduces the programming time.

2. Equipped with high pixel CCD enlarger lens and auxiliary promgram teaching and editing funtions ,the precision is higher and more accurate,and the image is clearer.It is convenient to distinguish between editing and modifying programs and single-step programs.

3. Automatic MARA point positioning and correction system .The moving path has real-time display and simulated route tracking.

It is clear at a glance that the automatic alignment correction function has higher cutting accuracy. As long as the PCB is offset within the range of 80mm', the machine vision can carry out automatic alignment correction, which relaxes the accuracy requirements of the operator when placing the board. And the working efficiency is greatly improved.

4. Tool life monitoring: after cutting a line of distance, the milling cutter will automatically rise and fall to the position of another female blade. The upper and lower distances and times can be set according to the length of the blade to prolong the life of the milling cutter.

5. The transparent safety door design makes the processing process clear at a glance. It provides an operating environment for safety inspection and provide an emergency stop to prevent processing.





PCB CNC Router Machine Specifications:

Machine Dimension 613x700x1600mm
Machine Weight 300kgs
Positioning System CCD and fixture
Control System AC Servo Motor
Power Supply 220V
Vacuum Mode Top/Bottom Vacuum
Working Area 310x360mm
Spindle 60000rpm
Cutting Speed 0-100mm/S
Repeatability ± 0.02mm
Safe Door Manual





PCB CNC Router Machine Cleaner:

Strainer Vertical box
Dust box dimensions 730mm×640mm×1700mm
Voltage power  AC380V 50HZ,2.2KW,3HP
Noise <75db(Below 75db)
Airinlet/outlet dimensions  6" 8"(6 inches/8 inches)
Power cord 5x2.52
High density filter bag 16PCS





PCB CNC Router Installation Requirements:

1. The power supply requirements of the plate distributor: AC380V (main engine) 4.8K8/9A+ (vacuum cleaner) 2.2KW/4.7A

2. Tn-s: Phase A, Phase B, Phase C, Zero Line (N), Ground Line (PE), Power Line 4mm2 Above

3. Air pressure requirement: 4-6kg/cm²

4. Placement space of the machine: 80-100CM maintenance distance should be reserved behind the machine from the wall.The left and the right sides need to reserve 50-80CM of maintenance distance.

5. Jig requirements: the total height is 37MM, divided into bottom frame+jig, and the length and width of bottom frame are 430M m×380m,M6 hole for bottom frame installation is square 360×360MM (as shown in the following figure).



PCB CNC Router Application:

Single Table PCB CNC Router Machine With Customizable Table 0



Our Service:

1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.



PCB CNC Router Shipment:

1. DHL/FedEx/UPS/TNT Express

2. Air

3. Railway

4. Ocean

5. Truck





Contact Details
Winsmart Electronic Co.,Ltd

Contact Person: Ms. Amy

Tel: +86-752-6891906

Send your inquiry directly to us (0 / 3000)
