Product Details:
|
| Connection Way: | Milling Joints | PCB Material: | FR4, Aluminum |
|---|---|---|---|
| PCB Thickness: | 0.8-3.0mm | Inspection Video: | Provided |
| Cutting Precision: | ±0.05mm | Certificate: | CE |
| Working Area: | 350x400mm | Cutting Speed: | 1-100mm/s |
| Cleaner: | Bottom Vacuum System | Product Name: | PCB Router Milling Cutter |
| High Light: | Visual PCB Router Milling Cutter,350x400mm PCB Router Milling Cutter,Four Axis PCB Depaneling Router Machine |
||

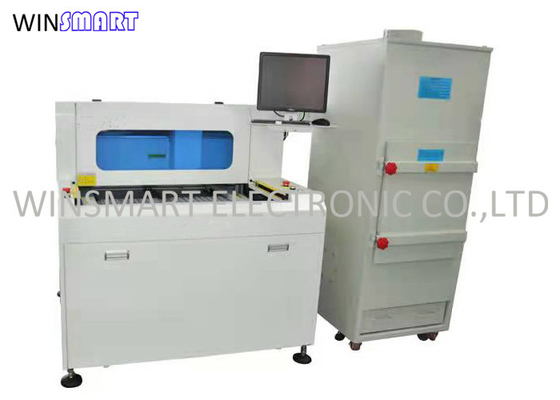

350x400mm Dual Table High-speed Four-axis Visual PCB Router Milling Cutter
PCB Router Machine Features:
This system has two-slide tables for high volume production. And it has lower stress to protect PCBA to ensure smooth cutting edge.
Imported motor and spindle is used for noise free purpose.
Optional top and bottom vacuum cleaning sytem is available for different clients' requirements.
High quality CCD system to ensure precise cutting.
Easy and simple programming, routing bits and cutting speed is adjustable.
PCBA Milling Cutter PCB Router Machine Specifications:
| Overall | |
| Dimensions(W*D*H) | 1150mm*1250mm*1325mm |
| Weight | 750KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 870mm*450mm*50mm |
| Work station | |
| PCB fixation | standard,specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 350*400mm |
| PCB thick (max) | 5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 40W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 100mm/s |
| Driving speed(max.) | 3000mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button |
PCB Router Vacuum Cleaner Parameters:
| Strainer | Vertical box |
| Dust box dimensions | 730mm×640mm×1700mm |
| Voltage power | AC380V 50HZ,2.2KW,3HP |
| Noise | Below 75db |
| Airinlet/outlet dimensions | 6 inches/8 inches |
| Power cord | 5X2.52 |
| High density filter bag | 16PCS |
PCB Router Machine Applications:
It is widely used in electronic industries manufacturing, such as mobile phone, automotive electronics, household electric appliances, mobile phone, LED lighting, medical industry, etc.
PCB Router Machine Installation Requirements:
1. The power supply requirements of the plate distributor: AC380V (main engine) 4.8K8/9A+ (vacuum cleaner) 2.2KW/4.7A
2. Tn-s: Phase A, Phase B, Phase C, Zero Line (N), Ground Line (PE), Power Line 4mm2 Above
3. Air pressure requirement: 4-6kg/cm²
4. Placement space of the machine: 80-100CM maintenance distance should be reserved behind the machine from the wall.The left and the right sides need to reserve 50-80CM of maintenance distance.
5. Fixture requirements: the total height is 37MM, divided into bottom frame+jig, and the length and width of bottom frame are 430M m×380m,M6 hole for bottom frame installation is square 360×360MM
