| Max Thermode Length: | 120mm | Jigs: | 2 |
|---|---|---|---|
| Head: | 2 | Temperature Accuracy: | ±2°C |
| Certificate: | CE | Name: | Hot Bar Machine |
| High Light: | Dual Head Automatic PCB Soldering Machine,Dual Table Automatic PCB Soldering Machine,Cylinder Control Soldering Hot Bar Machine |
||

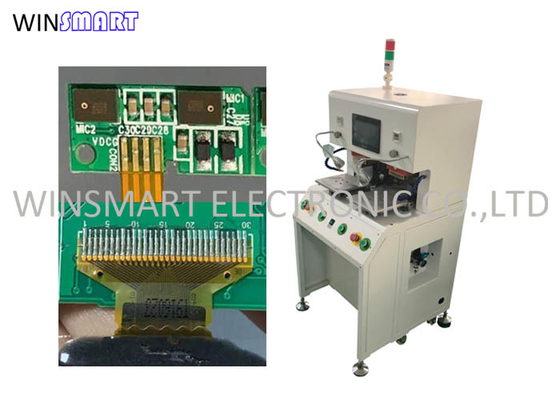

Dual Table Dual Head Automatic PCB Soldering Machine Hot Bar Machine
Hot Bar Machine Applications:
For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp, copper to copper, wire to PCB, ACF Soldering.
Hot Bar Machine Features:
1. According to different products, optional temperature for your choice.
2. Unique material thermode head, ensure the average pressure
3. Has vacuum function, easier for adjustment and positioning.
4. NC temperature, clear and high precision
5. With digital pressure gauge, pressure range can be preset.
6. Microcomputer control, high accuracy and stable.
7. Programmable curve Including pre-heating and reflow soldering temperature.
8. Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding.
9. Precise PID control, phase angle replace pulse drive.
10. Less Libration, less noise, avoiding voltage fluctuate
11. Rotable dual fixtures with high working efficiency
12. Touch screen input data, simplify the operation.
13. Real-time display temperature curve and temperature data
Hot Bar Machine Specification:
| Machine size | 660×620×1260mm |
| Working area | Max 150*150mm |
| Machine weight | 120Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 2 |
| Thermode head size | Max 80*5mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
