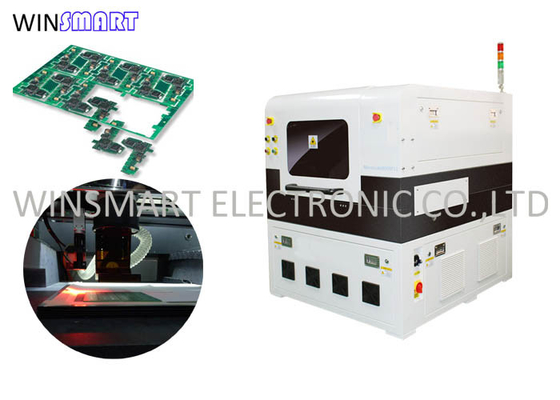

CCD Positioning System Laser PCB Machine FR4 FPC Laser PCB Depaneling Machine

Brand Name:	Winsmart
Model Number:	SMTL460
MOQ:	1 set
Packaging Details:	Plywood case
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

PCB Thickness:

0.1-3mm

Laser Source:

Green Or UV

Warranty:

1 Year

Repeat Precision:

±2 μm

Working Area:

400x400mm(Customizeable)

Name:

Laser PCB Machine

Supply Ability:

100 sets per month

Highlight:

CCD Positioning System Laser PCB Machine

FR4 FPC Laser PCB Depaneling Machine

400x400mm Laser PCB Machine

Product Description

CCD Positioning System Laser PCB Machine FR4 FPC Laser PCB Depaneling Machine

Laser PCB Machine Advantages:

1. More quick and easy, shorten the delivery time.

2. High quality, no distortion, surface clean& uniformity.

3. Smooth cutting edge, no cutting stress, no burr

Laser PCB Machine Specification:

Laser	Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength	355nm
Laser Source	Optowave UV 15W@30KHz
Positioning Precision of Worktable of Linear Motor	±2μm
Repetition Precision of Worktable of Linear Motor	±1μm
Effective Working Field	460mmx460mm(Customizable)
Scanning Speed	2500mm/s (max)
Working field	40mmх40mm

Laser PCS Machine Parameters:

1. Condition: New

2. After Warranty Service: Field maintenance and repair service, Online support, Spare parts, Video technical support

3. Video outgoing-inspection: Provided

4. Machinery Test Report: Provided

5. Marketing Type: New Product

6. Warranty of core components: 1 Year

7. Core Components: Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure vessel, Pump, Spindle

8. Place of Origin: Guangdong, China

9. Brand Name: Winsmart

10. Product name: Laser PCB Separator Machine

11. Laser power: 15W/20W (Optional)

12. Whole machine precision: ±20 μm

13. Positioning precision: ±2 μm

14. Repeat precision: ±2 μm

15. Voltage/ Power supply: Single Phase AC220V/3KW

16. Machine Weight: 2000KG

17. Processing size: 460mm*460mm

18. Working mode(offline): Manual loading and unloading, Inline is available
